Control4 C4-LU642D

Produktnummer: 10302167
Lagerbeholdning:

inkl. mva.

Control4® 4K Ultra HD 6x6 AV Matrix Switch with Audio Downmixing.

The C4-LU642D is a full-featured model for smaller projects. This model is capable of distributing six HDMI 4K Ultra HD sources to six zones—four utilizing HDBaseT Class A technology and two additional zones via local HDMI outputs. The integrated audio matrix can route audio extracted from the 6 HDMI sources and eight independent coaxial digital inputs to any of the HDBaseT or HDMI outputs and 8 analog audio outputs with variable volume, bass and treble controls as well as audio delay for lip sync correction. Featuring an integrated Ethernet switch, the LAN port on the C4-LU642D provides an Ethernet connection to up to four C4-LU1E HDBaseT Receivers. Fast switching times are achieved thanks to the Control4 advanced EDID management system and EZ-Calibration. Zone Lock technology ensures home theater and media rooms are able to take full advantage of the latest 4K and 3D content.

The C4-LU642D is designed to be seamlessly integrated into a Control4 home automation system. The C4-LU642D introduces audio downmixing, offering greater flexibility in where and how you enjoy your media. The D model can downmix multichannel audio from any of the HDMI inputs to the HDMI, HDBaseT and stereo audio outputs, allowing you to hear your 4K sources anywhere in your home. All popular Dolby® and DTS® formats are supported, including Dolby Digital, Dolby Digital Plus, Dolby TrueHD (lossless), Dolby Atmos®, DTS-ES™, DTS-HD, and many others.

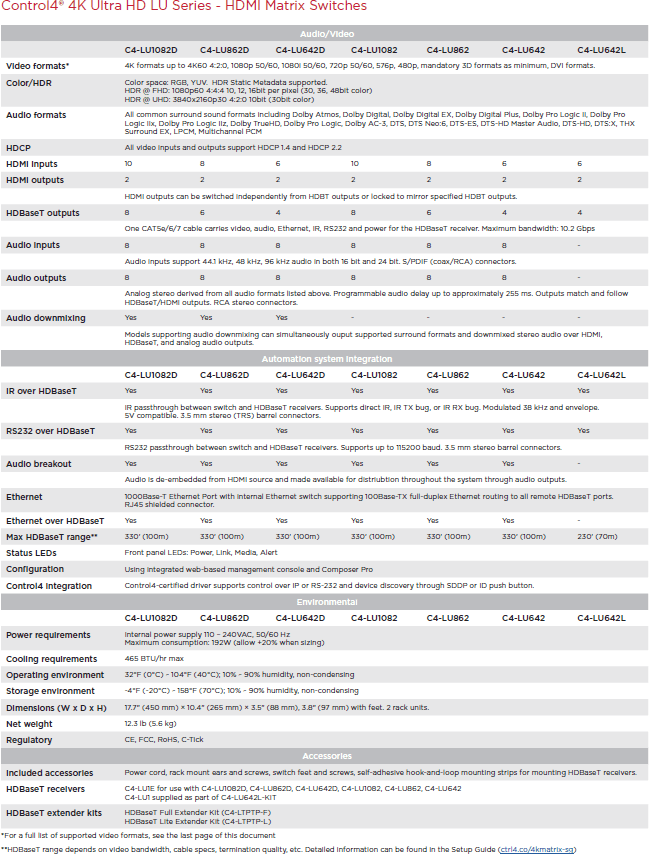

Features

  • 4K Ultra HD compatible
  • HDCP 2.2 compliant
  • HDBaseT 5 Play support allowing video, surround sound audio and IR and serial control distribution up to 100 meters over a single category cable
  • Ultra-compact HDBaseT receivers are powered from the switch, providing for a simple, clean installation
  • SDDP allows the for easy identification and fast installation. No need to mess with static IP addresses or reservations
  • Built-in audio matrix switch features 8 digital (coax) audio inputs (perfect for pairing with digital audio outputs on Control4 EA controllers) that can be routed to any HDMI*, HDBaseT*, or one of 8 analog audio outputs

    * Audio routed from digital (coax) inputs to HDMI or HDBaseT outputs is accompanied by a black video signal.



Control4 C4-LU1E

The world's slimmest, lightest and most compact PoH enabled HDBaseT Class A Receiver. Designed exclusively for use with the LU line of matrix switches, the Control4 C4-LU1E delivers stunning 4K UHD video and HD audio to your display device or AV receiver.
10301960

Control4 C4-LU1082D

Control4® 4K Ultra HD 10x10 AV Matrix Switch with Audio Downmixing. The 4K Ultra HD range of HDCP 2.2-compliant matrix switches delivers world-class distribution of your source material to every room in a residential installation.
10302313

Control4 C4-LU642

Control4® 4K Ultra HD 6x6 AV Matrix Switch
10301959

Control4 C4-LU642L-KIT

Control4® 4K Ultra HD 6X6 Matrix Kit
10302345

Control4 C4-LU862

Control4® 4K Ultra HD 8x8 AV Matrix Switch
10301687
