Ekinex EK-BA1-TP, Line/area coupler

Produktnummer: 10303917

inkl. mva.

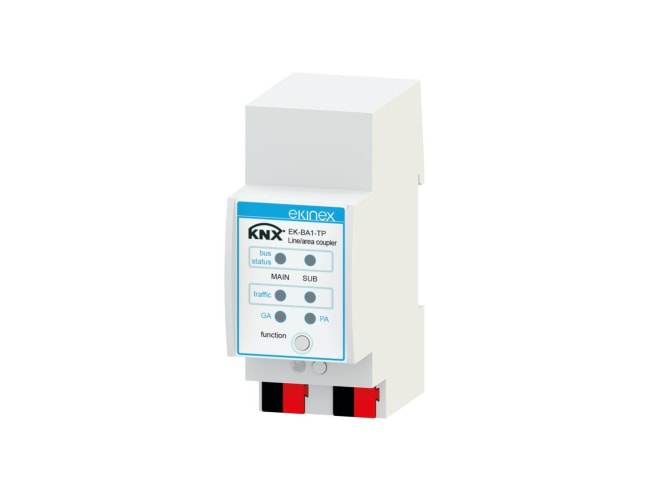

The ekinex® line / area coupler EK-BA1-TP can be used as a line coupler to connect a secondary line to a main line, as an area coupler to connect a main line to a backbone line or as a repeater.


KNX line or area coupler for connecting a bus line with a secondary one. Mounting in distribution board on EN 60715 rail (2 modular units, each 18 mm). Powered by the bus line. To be used in KNX installations for home and building automation.


• Suppress device configuration on the sub line
• Enable or disable filtering of group messages
• Suppress device oriented messages
• Trace the traffic on the sub line
• Reduced number of retransmissions


A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 or later versions. ETS application program: APEKBA1TP##.knxprod (## = release)
