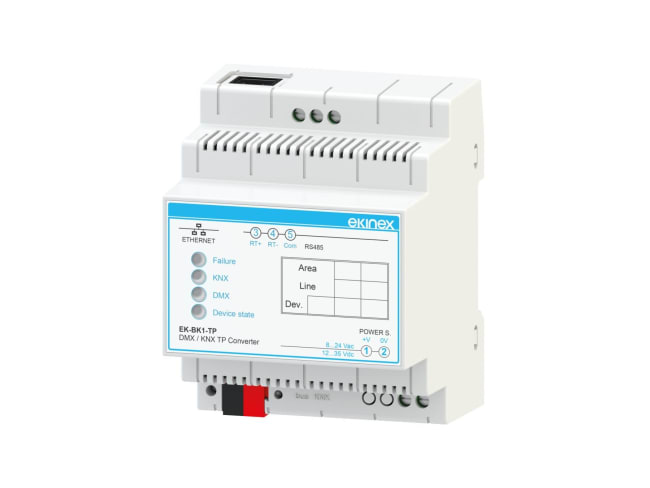

The ekinex® DMX - KNX Gateway performs a protocol converson between a serial RS485 DMX and a KNX TP network.
DESCRIPTION
Device working as a gateway (protocol conversion) between a DMX network and a KNX (TP) network. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.
FUNCTIONS / CHARACTERISTICS
DMX side • Electrically insulated RS485 serial communication port, 1-way DIP switch to activate the line terminator (120 Ohm) • DMX master communication • 250 kbaud communication speed • Device addressing from 0 to 512 • 1 byte register writing on a maximum of 512 DMX devices KNX side • KNX TP (twisted pair) 9600 baud communication port, electrically insulated from power supply • Volatile support memory with "image KNX" buffer of 1440 bytes
CONFIGURATION AND COMMISSIONING
A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require the application software CGEKBK1TP.exe
