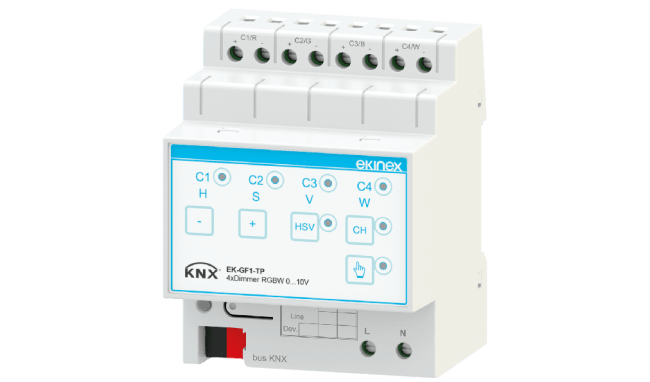

Ekinex EK-GF1-TP, 4-fold 0-10 V actuator

Produktnummer: 10341264
EAN: EK-GF1-TP
Lagerbeholdning:
Ekinex
inkl. mva.
Ta kontakt for pris

4-fold 0-10 V actuator

4-fold KNX dimmer-actuator for switching and dimming of ballast with 0-10V. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.



FUNCTIONS / FEATURES

  • ON/OFF switching and brightness regulation of single or groups of lighting devices
  • Logical gates and forced mode for each channel
  • Manual control by membrane pushbuttons
  • Status feedback of output channels through LEDs
  • Switching pushbutton manual/automatic mode
  • Block function for each channel
  • Time scheduling: switching delay for on and off
  • Integration in scenarios

CONFIGURATION AND COMMISSIONING

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 or later versions. ETS application program: APEKGF1TP##.knxprod (## = release).
