Key Digital KD-IP1022ENC, 4K UHD AV over IP Encoder
Produktnummer: 10303766
4K UHD AV over IP Encoder with Independent Video, Audio, KVM/USB Routing. Audio De-Embed with Volume, Delay, and Bass/Mid/Treble Control, 2 port PoE LAN Switch, HDMI Pass-through, 3 port IR, RS-232, Trigger Master Controller / Control Gateway.
- Enterprise AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension
- Video Wall Processing: Encoder + Decoder systems create video walls with up to 16 vertical and 16 horizontal monitors
- Independent Switching: Video, Audio, and USB switching all independently routable routed for multi-layer systems
- Control: 3 multi-function ports may be used as third-party control interface, Compass Control® Pro master controller, control extension via IP, or callable via KeyCode open API
- Key Digital® App Ready: Network scan & detect populates pre-built GUI including image preview, and finger drag video wall layout control
- HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
- 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit (10.2Gbps max bandwidth)
- 4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times
- Audio De-Embedding: At Encoder and Decoder for ease of integration with audio systems
- Audio Pre-Amp: Variable level settings for volume, muting, EQ, balance, and lip-sync delay per Encoder and Decoder
- HDMI Pass-Through (ENC): Enables connection to local monitor or other AV Devices
- Local HDMI Input (DEC): Creates localized input option ideal for presentation spaces
- Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or point-to-point
- Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch.
- Redundant Power Connection: Added reliability for non-PoE integration.
- Data Stream Bandwidth: < 900Mbps
- Latency: <40ms at 4K. Less at lower resolution.
- Installation: Use KD-SMS16 to cleanly install up to twelve KD-IP822/ENC/DEC units in rack
- Dual LAN: Built-in switch enables network connectivity and PoE powering of connected devices.
- USB 2.0: Supports synchronous and isochronous connections (web cams not supported)
- HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s
- EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder
- Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
- IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block
- Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units
- RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector
- RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
- Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
- Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
- Compass Control® Pro Inside: Built-in 3 port Compass Control® Pro master controller.
- KD-ProCL1/2/4/8 Software Activation License sold separately. Required to activate iOS controllers.

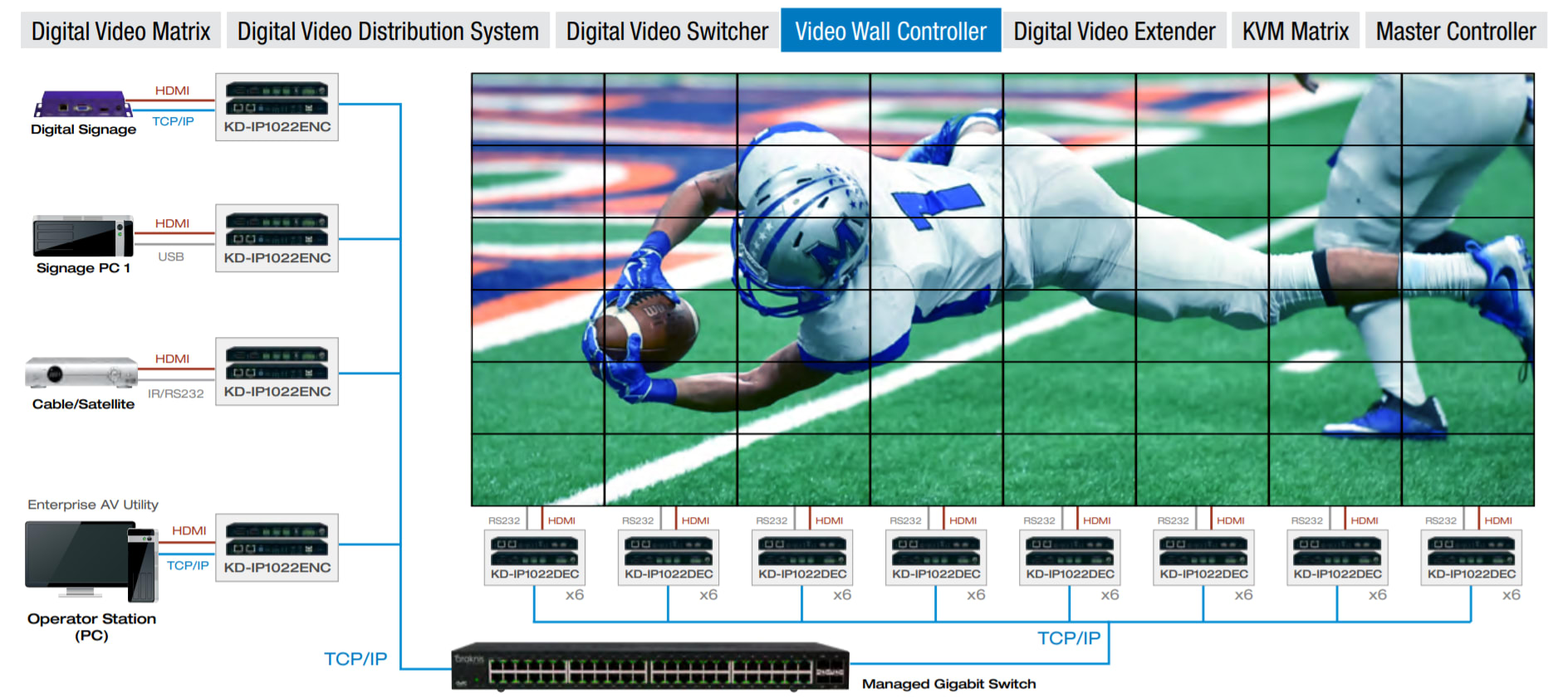

System design example
