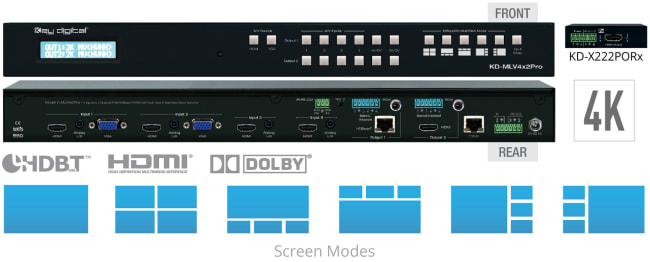

Key Digital KD-MLV4x2Pro, MultiView matrix switch

Produktnummer: 10303064
Lagerbeholdning:

inkl. mva.

Key Digital 4x2 HDMI VGA HDBaseT Seamless Presentation Matrix Switcher


  • Multi-view and Tiling Processor: Create & store custom multi-view layouts, recall custom presets in 1080p (2K) Multi-view mode

    • Quadrant Mode (4K or 2K): Independent outputs in four equally-sized windows

    • Multi-view Mode (2K): Linked/mirrored outputs in customized screen layout

  • Seamless Switching: Un-interrupted screen transitions during source selections

  • Independent matrix switching: In full-screen and quadrant modes, linked/mirrored in multi-view mode

  • Image Layering: Stack images with customizable priority settings

  • Window Transparency and Border: View content through each other and choose window bezel width and coloring

  • Multi-format Switch:

    • Input: 2 HDMI, 2 HDMI or Analog video, all with external audio

    • Output:  1 HDMI and 1 HDBaseT output. Rx unit included

  • HDBaseT Built-In: Included KD-X222PORx unit is powered by at KD-MLV4x2Pro

  • Signal Extension:

    • Up to 200 feet @ 1080p/60, 1080p/24, 1080i, 720p with third-party CAT5e/6

    • Up to 125 feet @ 4096x2160 30Hz [4:4:4] 8bit with third-party CAT5e/6

  • Ultra HD/4K Up-scaling: Outputs independently upscale to 4096x2160 30Hz [4:4:4] 8bit in 4K Quadrant mode

  • HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2

  • Resolution Support: Supports SD, HD, and VESA input resolutions up to 1080p / 1920x1200 on HDMI and analog video Inputs. Outputs fixed to 1080p or 4K

  • Web Control Interface: Reduces installation time and provides basic and advanced video and audio setup

  • Audio De-Embed: Audio from the selected input is be de-embedded through the Coax digital (PCM) output in addition to the HDMI output

  • Independent Video & Audio: Listen to any audio source while in quadrant or multi-view modes

  • Dolby Digital & DTS Audio: Supports 2-channel and multi-channel audio formats up to 5.1 Dolby® / DTS™ lossless compressed digital surround sound

  • Analog to Digital Video Conversion: Analog video input ports support VGA / DB15 or Component / YPbPr signal types

  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

  • EDID: Internal library with 5 default EDID configurations for input, in addition to native EDID data for any Output / Display

  • TMDS Re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables

  • Deep Color Support: Up to 12 bits/color

  • Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control

  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

  • Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App

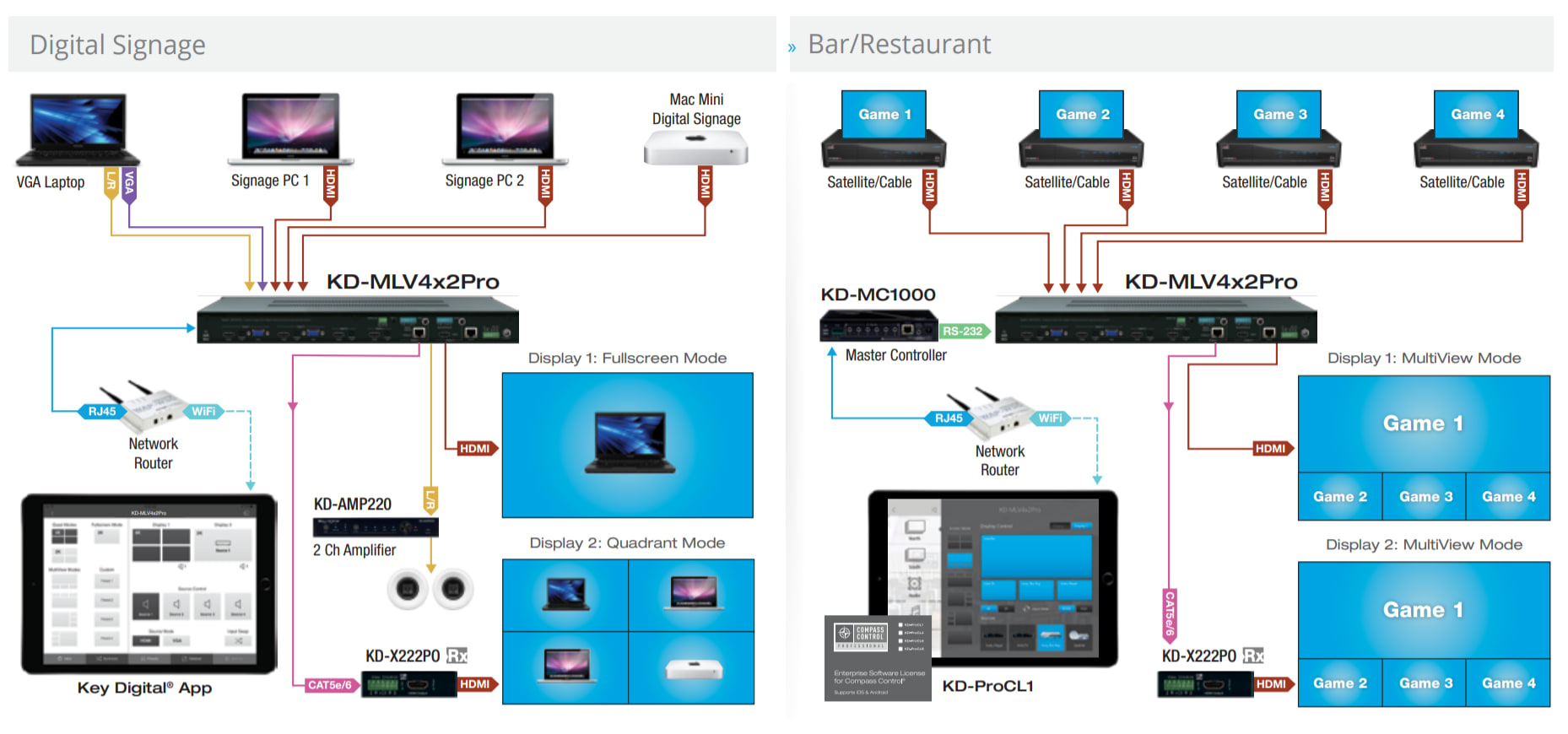

System design example
