Lilin Z2R8852AX, stk

Produktnummer: 10303698
Lagerbeholdning:

inkl. mva.

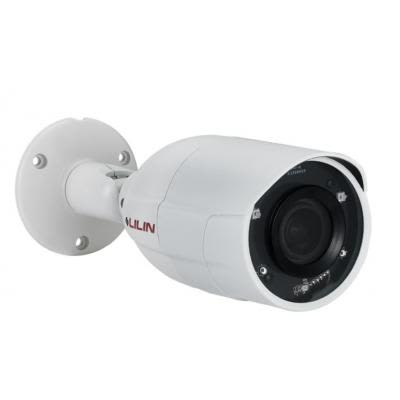

5MP Day & Night Auto Focus IR IP Bullet Camera

Features

  • 5 megapixel CMOS image sensor
  • 5MP H.265/HEVC and H.264/AVC high-performance video compression
  • Simultaneous streaming of H.265 and H.264 encoded streams
  • Auto focus with zoom / focus motorized lens
  • Smart H.264/H.265 supported
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • HDR function up to 100dB
  • Digital PTZ supported
  • IVS supported
  • Tampering / Audio / Alarm / Motion / Network lost detection event function
  • SMART event
  • High efficiency IR LED, radiant distance up to 30m
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out
  • ONVIF Profile S supported
  • IP67 rain and dust resistant
  • Vandal resistant approve



Model Z2R8852AX
Min. illumination/Low Light Mode (Colour) Color : 0.01 Lux at F1.6 ; B/W : 0.005 Lux at F1.6 ; 0 Lux with IR LED ON
Starting Temperature -10°C – +50°C (14°F – 122°F)
Operating temperature -40°C – +50°C (-40°F – 122°F)
Storage temperature -25°C – +60°C (-13°F – 140°F)
Operating humidity 0% – 90% RH
Power Supply DC12V ±10% / PoE (IEEE 802.3af compliant)
Power Consumption DC12V, 7.5W / PoE, 10.2W
Lens 2.8 – 8 mm (zoom / focus motorized)
Iris F1.6
Iris Control Fixed IRIS
Angle of View 95.3° (W) – 51.8°(T) (H) 69.4° (W) – 38.6°(T) (V) 124.2° (W) – 64.6°(T) (D)
Peak wavelength 850nm
Beam Spread 60°, 90°
Max IR distance 30M
Pick Up Element 1/2.8" CMOS image sensor
Effective pixels 2616 (H) × 1964 (V) = 5,137,8245 (pixels)
CE Yes, EMI CLASS B
FCC Yes, EMI CLASS B
IP Rating IP67
Vandal Resistant Rating / IK Rating IK10
CPU Intel® Core™ i7 or higher grade
OS Windows 7 or above
RAM 8GB or above, Dedicated Graphics Card
Web browser Microsoft® Internet Explorer® 9 or above
Dimensions 74(W) × 69(H) × 189(D) mm
Weight 520g TBC
Casing Material Aluminum alloy
Window / Glass Thickness Ø58 Heat Resistant Glass
Audio Input / Output Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block
Audio Two-way Audio, G.711 u-law / PCM / AAC, SIP, External Microphone Required
Alarm Input / output Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block
Video Compression H.265/HEVC main profile, H.264 main and high profile , Motion JPEG
Video streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth
Number of streams 4
Video bitrate 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, Smart H.264/H.265
Encryption Base64 HTTP encryption, HTTPS encryption
Authentication Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS
Address Filter IP address filter, MAC address filter
Access Multiple user access levels with password protection
User accounts 10 simultaneous users
Multi IP address Yes
Resolution 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240)
Frame Rates Normal mode: up to 25 fps @ 2592 × 1944 HDR mode: up to 15 fps @ 2592 × 1944
Scanning System Progressive Scan
Infrared Cut Filter Auto / Day (Color) / Night (Mono) / Schedule
White Balance ATW-NARROW / ATW-WIDE / AWC(MANUAL)
Back Light Compensation (BLC) Yes
Electrical Shutter 1/30(1/25)s – 1/30000s Off / 1 Frame / 2 Frames
Sense Up Off / 1 Frame / 2 Frames
Sense Up+ Yes
Auto Gain Control 60 dB Variable Gain
S / N Ratio More than 50dB (AGC off)
3D Noise Reduction Off / 1 – 32 Selectable
2D WDR Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif
High Dynamic Range(HDR) Up to 100dB (by HDR mode, 2 shutter line interleave)
Privacy Masking Off / On (4 zones)
Image Effects Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction
Auto Focus One Push
EV (Exposure Value) Adjustable
Lens distorsion correction (LDC) Yes
Mobile phone Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support
Video Management ONVIF Profile S / IVS events, LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API
SD Card (recording) Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included)
Maintenance Firmware update via HTTP and IP Scan; Firmware available at web site
IVS Basic 1.0 Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection, Object Counting
Alarm event triggers Motion / Tamper / Network lost detection / SmartEvent
Alarm event actions FTP / SMTP / HTTP post / SD card / SAMBA / SMTP Trap
Languages English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
Network Interface/Ethernet 10/100 Mbps Base-T, RJ-45
ePTZ & Digital Zoom Yes, ROI (Region of Interest)
OSD Position configurable text overlay for date, time, camera ID, event status and watermark with customizable user demand data
CPU.Memory Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory
Network OS Embedded Linux 3.10
Protocols IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , SDDP, Bonjour , 802.1x, SSL/TLS
Max number of online users 10 simultaneous users
Video Display LILIN Universal ActiveX , LILIN Java Applet
Watermark BMP logo
Log Event & operation log & IVS event log
Schedule Support holiday list
Network Storage NAS (Support SAMBA/CIFS)
