Specifications

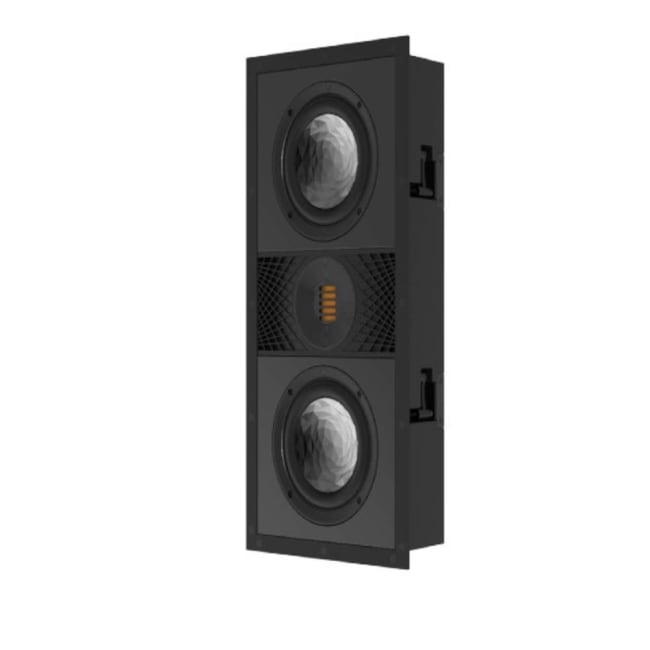

| IW-VJ63-S | |
|
Speaker type: |
2-way, sealed cabinet |
|
Tweeter: |
jet folded ribbon |
|
Woofer: |
1 x 6” Active & 1 x 6” Passive Crystal Aluminum Sandwich Cones |
|
Crossover frequency: |
2,400 Hz |
|
Frequency response: |
48 to 50,000 Hz |
|
Sensitivity: |
86 db at 2.83 v/1m |
|
Recommended amplifier power: |
40 to 120 Watts |
|
Nominal/peak power handling: |
120/160 Watts |
|
Nominal impedance: |
4 Ohm |
|
Finish: |
Black baffle/White grille |
|
Grille: |
Metal Magnetic Paintable |
|
Accessories included: |
Cutout template, manual |
|
Dimensions : |
Height: 520 mm - Width: 248 mm |
|
Cut-Out : |
Height: 498 mm - Width: 226 mm |
| Mounting Depth: |
97.0 mm |
