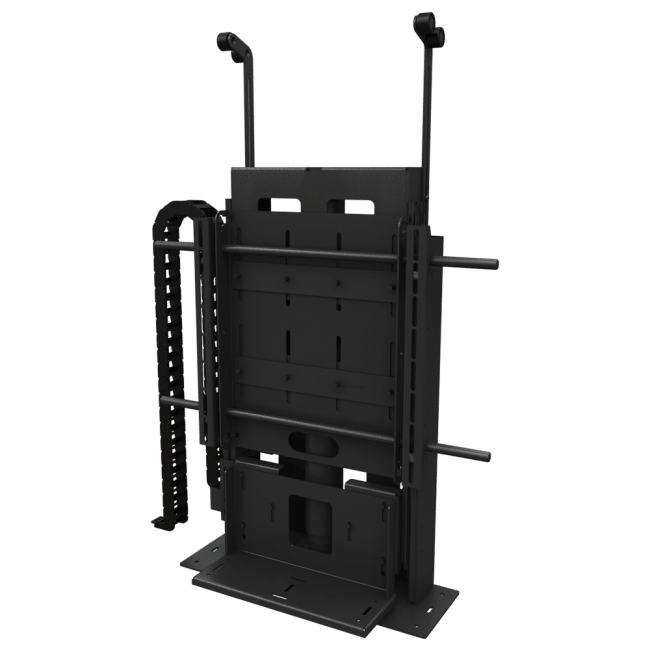

Future Automation AL-965-RF

Produktnummer: 10301346
Lagerbeholdning:

inkl. mva.

TELESCOPIC TV LIFT FOR 50"-65" SCREENS

The AL965 is the larger of our two TV Actuator Lift Mechanisms and shares the same great features as the smaller AL675. Suitable for screens from 50” to 65”, the near silent motor makes this lift ideal for both residential and commercial installations. The AL965 mechanism is shipped as a fully built unit, with no self-assembly required, making installation quick and simple. As with all Future Automation automated mechanisms, IR, Contact Closure, and RS232 control options as supplied standard.

  • Supplied as a fully built unit the AL965 ships ready to be integrated with no self-assembly required
  • In built cable management chain ensures cables are securely stowed for safe mechanism operation and a neat finish
  • Smooth and efficient movement, combined with a near silent motor, make this lift ideal for residential installation
  • A telescopic actuator motor enables height efficient cabinet design, requiring only 75mm (2.95”) of height above the screen
  • Hinged lid supplied as standard, with optional fixed lid supplied upon request to allow for a flexible install, as well as base joinery panel mounting brackets to enable a complete cabinet finish
  • Supplied with IR, Contact Closure, & RS232 control options as standard (RF version available)

TECHNICAL SPECIFICATION

PRODUCT CODE AL965
CONTROL BOX DIMENSIONS 150 X 210 X 50MM (5.9 X 8.26 X 1.96")
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR (RF VERSION AVAILABLE)
DECIBEL RATING 50DB
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005
LID TYPES AVAILABLE STANDARD - PUSH FLAP
OPTIONAL - FIXED LID (SUPPLIED UPON REQUEST)
MAX SCREEN HEIGHT 930MM (36.51")
MAX WEIGHT 40KG (88LBS)
MOVEMENT TYPE MOTORISED
OUTPUT POWER SUPPLY YES(12V)
POWER CONSUMPTION MAX 200W
POWER CONSUMPTION (STANDBY) 3W
POWER SUPPLY 240V OR 110V
SCREEN SIZES (APPROX) 50-65" (APPROX)
SHIPPING INFORMATION
SHIPPING DIMENSIONS 111 x 87 x 32cm (43.70 x 34.25 x 12.59")
SHIPPING WEIGHT 38kg (84lbs)
