Binary B-900-MOIP-4K-RX

Produktnummer: 10303671
Lagerbeholdning:

inkl. mva.

BINARY™ 900 SERIES 4K MEDIA OVER IP RECEIVERS

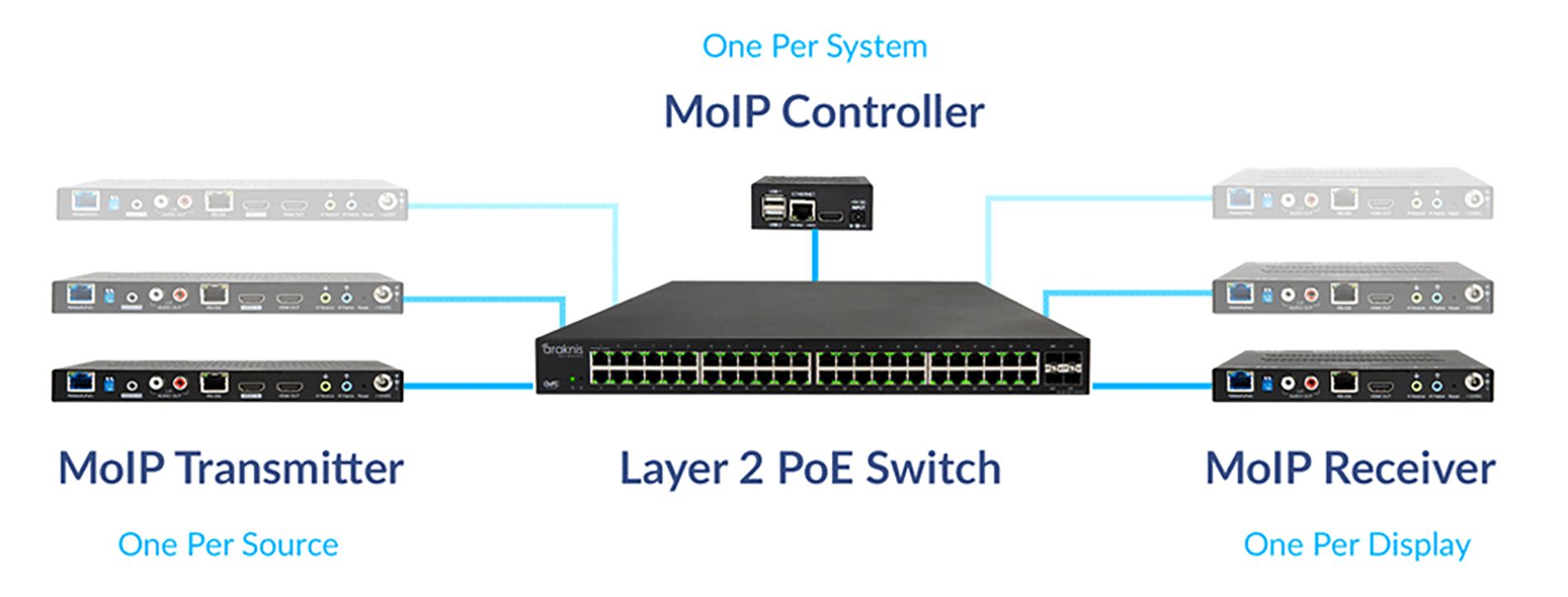

Binary™ 900 Series 4K Media over IP Receivers, when joined in a system with MoIP transmitters and one MoIP controller create a highly scalable, flexible IP media distribution system delivering visually lossless 4K HDR (HDR 30Hz and HDCP 2.2 compatible) video and all multichannel formats including Dolby Atmos and DTS-X. Operating on a cost-effective gigabit Layer 2 PoE switch, this setup is the fastest and simplest out there. Additionally, OvrC remote management allows for quick system setup, easy troubleshooting with access to live screenshots of source stream and fast, simple firmware updates.1 MoIP Receivers also include an integrated video scaler, allowing 4K source content to be simultaneously distributed to both 4K and 1080p displays, plus audio breakout. Lastly, RS-232, IR, and custom drivers for popular control systems provide tremendous flexibility in system design.

Visually Lossless 4K Video

MoIP encodes video up to 4K HDR using visually-lossless, variable bit-rate compression technology. The system is HDR and HDCP 2.2 compatible, resulting in an ultra-stable video stream, perfect audio/video sync and ultra-low latency (one frame).

Mixed 4K & 1080p Sources and Displays

Traditional matrix switchers force you to downgrade all source content to the lowest video quality that will work on all displays. Whether your customer is moving to a full, 4K system now or upgrading from 1080p to 4K over time, MoIP provides the custom solution that fits their budget, without compromising quality.

Limitless Control Options

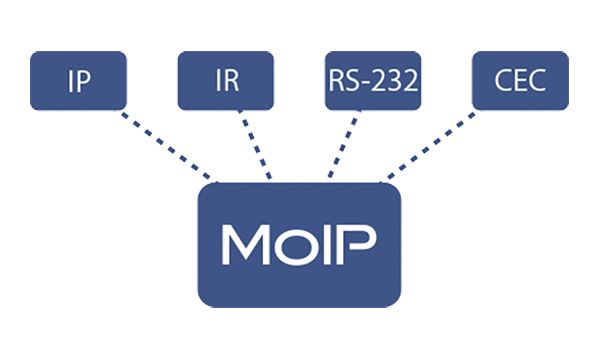

Switching of inputs (TX) to outputs (RX) is done through IP commands from a control system sent to the MoIP controller. Out of the box, the system supports three methods for controlling sources and displays: IR, RS-232 and CEC. IR or RS-232 commands can be issued via IP and generated at each endpoint. If desired, IR and RS-232 virtual routing can also be configured from any TX to any or all RX(s). Desired methods for issuing commands are selectable via the local UI. Lastly, for more basic installs where display on and standby is all that is needed, MoIP also supports CEC.

Control System Integration

Our engineers have written drivers for the industry’s leading control systems, including Control4, Crestron, ELAN, URC and more – so controlling the system has a familiar feel. Advanced features like IR routing and RS-232 over IP deliver even more flexibility and customization – and we’ve even provided the MoIP controller’s API to create your own drivers if needed.

Binary B-900-MOIP-4K-CTRL, 4K Media over IP Controller

There are a host of things that make Binary Media over IP “special,” but the MoIP Controller is at the top of the list. To deliver the easiest and most seamless experience possible, our in-house development team created a sophisticated MoIP management platform.
