BINARY™ 900 SERIES 4K MEDIA OVER IP RECEIVERS WITH AUDIO DOWNMIXING

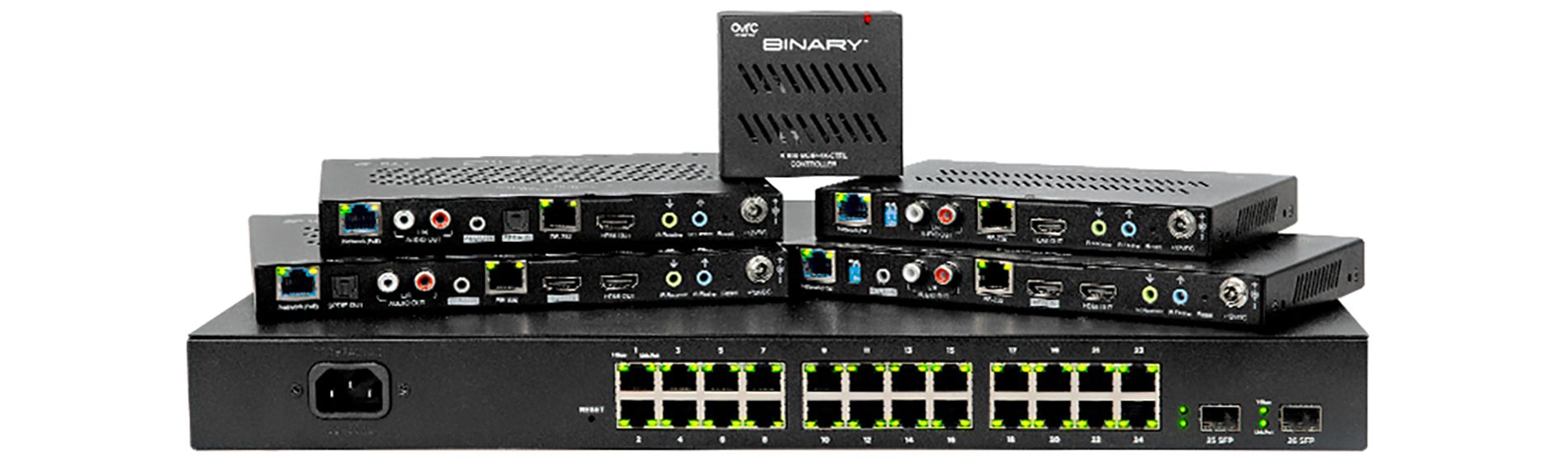

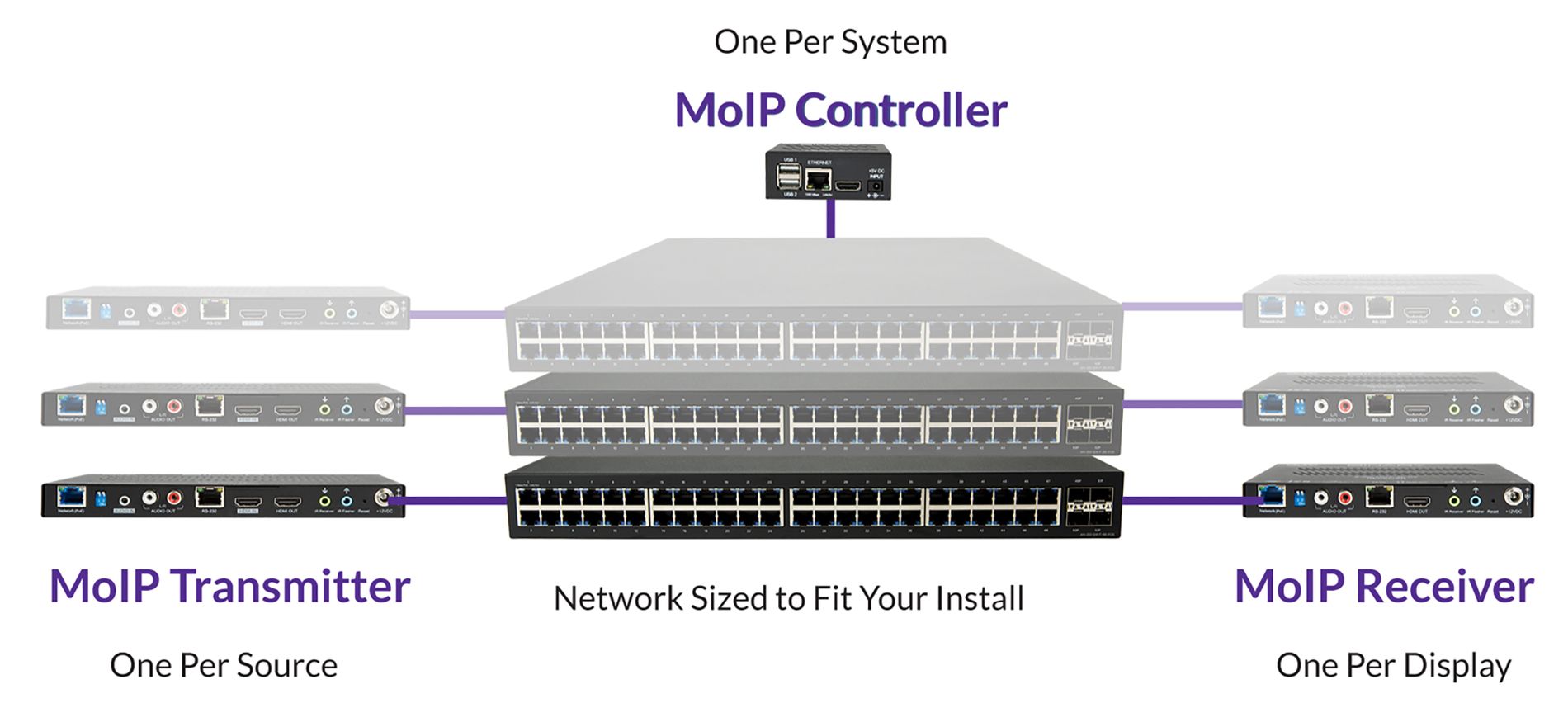

Binary™ 900 Series 4K Media over IP Receivers, when joined in a system with MoIP Transmitters and one MoIP Controller, create a highly scalable, flexible IP media distribution system delivering visually lossless 4K HDR (HDR 30Hz and HDCP 2.2 compatible) video. Operating on a cost-effective gigabit Layer 2 PoE switch, this setup is the fastest and simplest out there. Plus, with Audio Downmixing and Audio Lip Sync adjustment, you'll have ultimate audio flexibility. Additionally, OvrC remote management allows for quick system setup, easy troubleshooting with access to live screenshots of source stream and fast, simple firmware updates. MoIP Receivers also include an integrated video scaler, allowing 4K source content to be simultaneously distributed to both 4K and 1080p displays, plus audio breakout. Lastly, RS-232, IR, and IP drivers for popular control systems provide tremendous flexibility in system design.
Dolby and DTS Audio Downmixing: Our Binary™ 900 Series 4K Media over IP Receiver with Downmixing eliminates the need to choose multi-channel audio or force downmixing, providing immersive multi-channel audio in one area while sharing throughout the space in 2-channel audio format.
HDMI Audio API Control: The Binary™ 900 Series 4K Media over IP Receiver allows audio downmixing of multi-channel to 2-channel and multi-channel to HDMI output, enabling the HDMI downmix to be controlled by an API with three options: bypass, 2-channel mode, and auto mode for complete audio flexibility.
Supported Audio: Binary™ 900 Series 4K Media over IP Transmitters and Receivers support Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS, DTS-HD, and DTS-HD Master downmixing for ultimate flexibility in video and audio integration.
Audio Lip Sync Adjustment: The Binary™ 900 Series 4K Media over IP Transmitters and Receivers with Downmixing support lip-sync adjusting for the analog output from 0ms to 250ms for perfect audio/video synchronization.
MoIP Backward Compatibility: The B-900-MOIP-4K-RX-2AC receiver and B-900-MOIP-4K-TX-2AC transmitter are designed to coexist with B-900-MOIP-4K-RX receivers and B-900-MOIP-4K-TX transmitters, letting you downmix when needed. Plus, decoders at each endpoint provide additional system flexibility. Downmix audio from each source into a multizone audio system, expand audio from a MoIP receiver to a secondary listening zone with only 2-channel audio, or both!
Visually Lossless 4K Video: MoIP encodes video up to 4K HDR using visually-lossless, variable bit-rate compression technology. The system is HDR and HDCP 2.2 compatible, resulting in an ultra-stable video stream, perfect audio/video sync and ultra-low latency (one frame).
Mixed 4K & 1080p Sources and Displays: Traditional matrix switchers force you to downgrade all source content to the lowest video quality that will work on all displays. Whether your customer is moving to a full, 4K system now or upgrading from 1080p to 4K over time, MoIP provides the custom solution that fits their budget, without compromising quality.Traditional matrix switchers force you to downgrade all source content to the lowest video quality that will work on all displays. Whether your customer is moving to a full, 4K system now or upgrading from 1080p to 4K over time, MoIP provides the custom solution that fits their budget, without compromising quality.

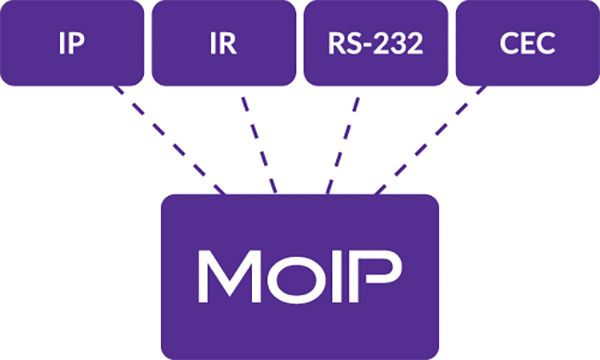

Limitless Control Options: Switching of inputs (TX) to outputs (RX) is done through IP commands from a control system sent to the MoIP controller. Out of the box, the system supports three methods for controlling sources and displays: IR, RS-232 and CEC. IR or RS-232 commands can be issued via IP and generated at each endpoint. If desired, IR and RS-232 virtual routing can also be configured from any TX to any or all RX(s). Desired methods for issuing commands are selectable via the local UI. Lastly, for more basic installs where display on and standby is all that is needed, MoIP also supports CEC.
Control System Integration: Our engineers have written drivers for the industry’s leading control systems, including Control4, Crestron, ELAN, URC and more – so controlling the system has a familiar feel. Advanced features like IR routing and RS-232 over IP deliver even more flexibility and customization – and we’ve even provided the MoIP controller’s API to create your own drivers if needed.
