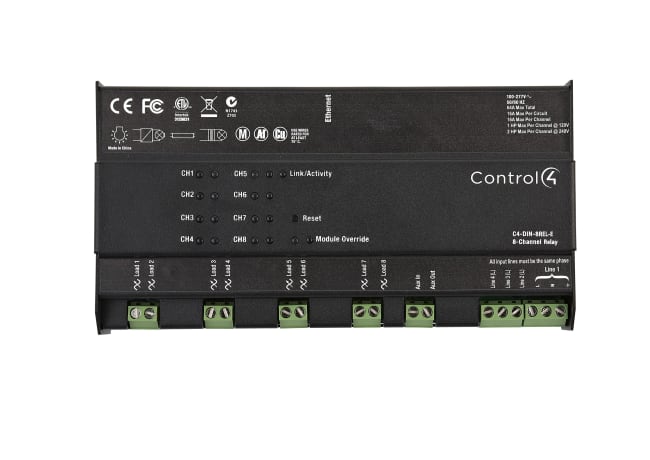

Control4 C4-DIN-8REL-E2

Produktnummer: 10301282
Lagerbeholdning:

inkl. mva.

The Control4® 8-Channel Relay controls up to eight (8) high in-rush loads from one module in the Contro4® system. Each channel supports a variety of load types including Incandescent, Halogen, Electronic Low Voltage Transformers, Magnetic Low Voltage Transformers, Fluorescents, Compact Fluorescents, LEDs and Motors.

Features

  • Controls up to eight (8) high in-rush loads
  • Each channel is rated for 16 Amps
  • Channel buttons allow for toggling on/off a load
  • Channel status LEDs indicate whether a load is on, off or in short circuit fault
  • Module override button allows toggling between the module override scene and all channels off or setting the module override scene to current channel on/off settings
  • Module status LED indicates if module power is on with normal operation, off or in thermal overload
  • Link/Activity LED indicates system link status, communication activity or firmware update status
  • Reset button can be use for factory default or various IP configuration settings
  • Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system is installed or in case the controller malfunctions
  • Module can be installed in either a Contro4® 5 or 2-slot panel or a third-party DIN rail panel
