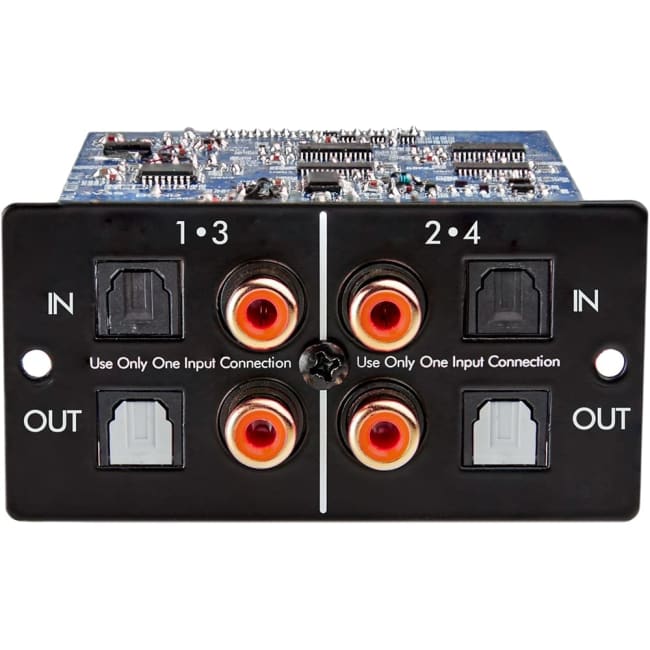

The Digital Input Module (DIM) is the ultimate performance enhancement to any Sonance distributed audio system. When paired with a SONAMP DSP amplifier, the DIM allows for a direct connection to a digital source ensuring the signal passes through to the sophisticated 24 bit/96kHz capable DAC in the amplifier with the shortest signal path possible & at the highest performance level.
Compatible With: DSP 2-150, DSP 8-130 and DSP 2-750 Input Signal: PCM Audio (not compatible with 5.1/7.1 surround signal) Bit Rate: 16 - 24 bit Sample Frequency: 44.1 - 96kHz Input 1: Toslink optical digital or Coaxial digital (only one can be used) Loop Output 1: Buffered Toslink optical or Coaxial digital Input 2: Toslink optical digital or Coaxial digital (only one can be used) Loop Output 2: Buffered Toslink optical or Coaxial digital Width: 3" (75mm) Height: 1 1/2" (38mm) Depth: 3 13/32" (87mm) Depth with RCAs: 3 11/16" (93mm) Shipping Weight: 1 lbs. (.45kg)
