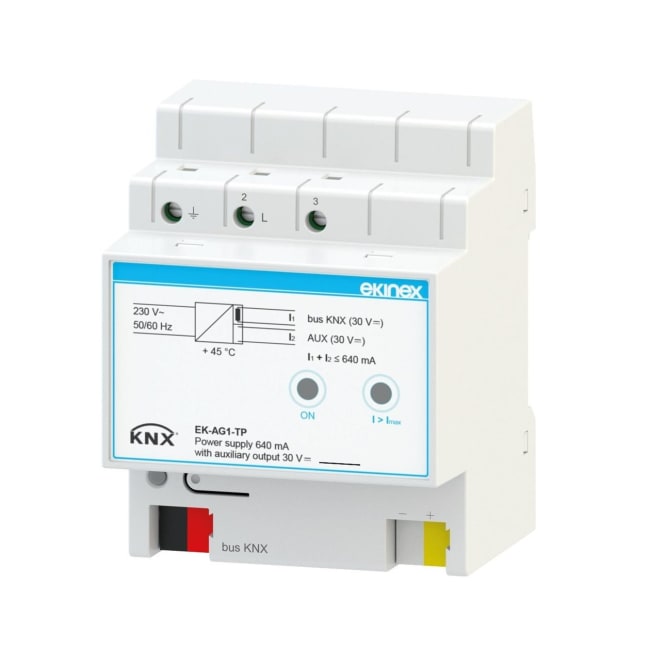

Ekinex EK-AG1-TP, KNX bus power supply 640 mA

Produktnummer: 10302687
Lagerbeholdning:

inkl. mva.

The ekinex® 640 mA KNX bus power supply EK-AG1-TP supplies and monitors the 30 Vdc voltage required by the KNX bus for operation.

DESCRIPTION

Device functioning as KNX bus line power supply with auxiliary output 30 Vdc. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

FUNCTIONS / CHARACTERISTICS

• Power supply of a KNX bus line with max. 64 bus devices connected
• Auxiliary power supply 30 Vdc SELV
• Reset of the connected bus line through pushbutton

CONFIGURATION AND COMMISSIONING

The device does not need any configuration. ETS application program: APEKAG1TP##.knxprod (## = release). Available languages: English, French, German, Italian
