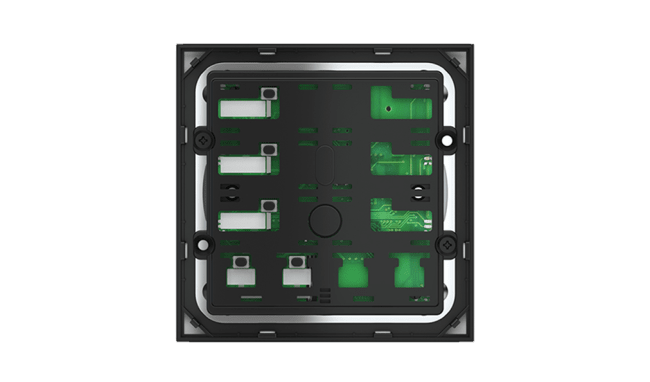

Ekinex EK-E20-TP-5LS, 5-fold pushbutton with led

Produktnummer: 10341200
Lagerbeholdning:

inkl. mva.

COMING SOON - 5-fold pushbutton with led.

The Ekinex® 20venti series 5-fold pushbutton is used for on/off control of utility devices, dimming of luminaires, control of motorized drives for roller shutters or other programmable control functions. Thanks to the integrated temperature sensor, the button can act as a temperature controller for a room or zone. RGB LED for each rocker. The switch has an integrated KNX bus communication module and is designed for installation in a flush-mounted wall box.

Delivery includes a terminal block for connection to the bus, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart), a plastic adapter and two pairs of fixing screws.

The following accessories are available to be ordered separately:

  • 3 rectangular 30 x 15 mm plastic rockers with or without led and 2 square 15 x 15 mm plastic keys with or without backlit markers
  • square plate of the Deep and Surface series with 60 x 60 mm window

FUNCTIONS / FEATURES

  • 5 fold version (possibility to configure up to 3 independent functions plus 2 paired keys for adjustments)
  • RGB LED for each freely programmable button
  • Integrated temperature sensor
  • Room thermostat function
  • Plastic casing
  • Connection to bus line with KNX terminal block
  • Wall-mounting installation on round or square wall box
  • IP20 protection degree (installed)
  • 30 Vdc power supply by KNX bus

CONFIGURATION AND COMMISSIONING

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 or later versions. ETS application program: APEKE20TP##.knxprod (## = release).
