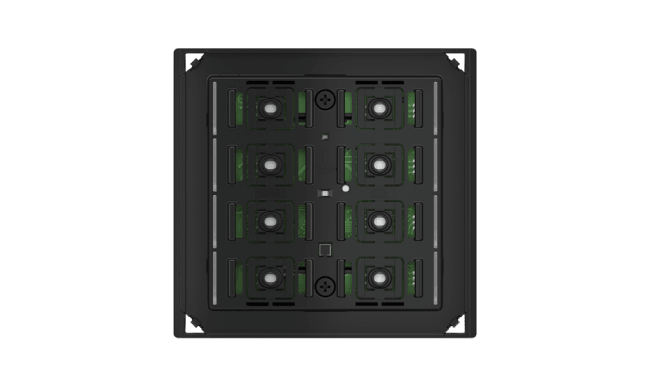

Ekinex EK-E22-TP, Basic Pushbutton (NO LED)

Produktnummer: 10303891

inkl. mva.

Ekinex 71-serien er harmonisk og opprinnelig med nøyaktighet i detaljer. KNX teknologi med brytere, termostater og touchpaneler i et utvalg av plast-, metall- eller Fenix NTM® materialer.

1-, 2- or 4-fold KNX pushbutton (max. 8 independent functions). Mounting on round or square wall box. Power supply via bus. To be used in KNX installations for home and building automation. Bus terminal block, fixing screws and mounting support included in the delivery. The device has to be to completed alternatively with:

  • one square 60 x 60 mm rocker (EK-T1Q-...)
  • two rectangular 30 x 60 mm rockers (EK-T2R-...)
  • four square 30 x 30 mm rockers (EK-T4Q-...)
  • four rectangular 60 x 15 mm rockers (EK-T4R-...)

The rockers have to be ordered separately; the basic code must be completed with the extension for the colour.

Versions to be completed with a square frame of the series form or flank:

'NF (No Frame) versions for mounting without frame:
EK-E22-TP-NF (black side profile)
EK-E22-TP-NFW (white side profile)

Possibility of mounting with 2-fold plates EK-P2G-... and EK-P2S-...


  • on/off switching of single loads or groups of loads
  • dimming of lighting devices
  • control of motor drives (for roller shutters, blinds, curtains, etc.)
  • logic functions
  • sending on the bus of values
  • recalling and saving of scenes
  • switching to forced functioning (lock)


A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 or later versions. ETS application program: APEKE22TP##.knxprod (## = release). Available languages: English, French, German, Italian
