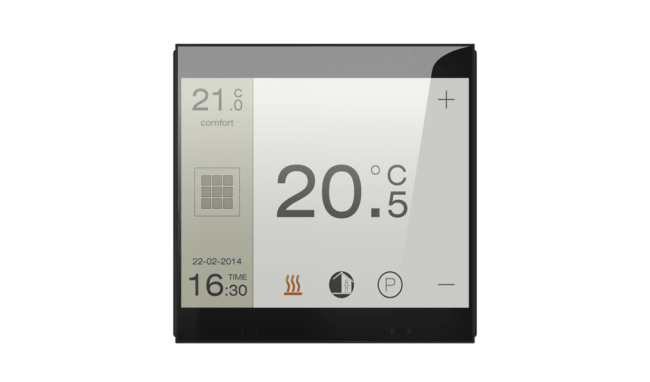

Ekinex EK-EC2-00-TP-NFW, Touch&See display EC2

Produktnummer: 10341289
Lagerbeholdning:

inkl. mva.

Ekinex FF-serien er essensiell geometri i former, LESS IS MORE. KNX teknologi med brytere, termostater og touchpaneler i et utvalg av plast-, metall- eller Fenix NTM® materialer.

KNX control and visualisation unit. 3.5" touch screen and user interface with graphical pages. Mounting on round or square wall box. Connections to bus and auxiliary 30Vdc power supply. To be used in KNX installations for home and building automation. Terminal blocks for bus and auxiliary power supply, fixing screws and mounting support included in the delivery.

Versions to be completed with a square frame of the series form or flank:
EK-EC2-TP

'NF (No Frame) versions:
EK-EC2-TP-00-NF

'NF (No Frame) versions with housing in white plastic:
EK-EC2-TP-00-NFW

FUNCTIONS / FEATURES

  • chronothermostat for up to 8 independent zones
  • on/off switching of single loads or groups of loads
  • dimming of lighting devices
  • control of motor drives (for roller shutters, blinds, curtains, etc.)
  • displaying of status of signal contacts (from safety devices, etc..)
  • displaying date and time from the internal clock or a KNX timer
  • displaying values from a KNX weather station such as outdoor temperature, wind speed, rain presence, brightness, etc.
  • displaying of alarm messages
  • recalling and storage of scenarios
  • sending of values (temperature, brightness, etc.) on the bus
  • function blocking with password
  • temporarily locking function for screen cleaning
  • compatibility with KNX supervision systems

CONFIGURATION AND COMMISSIONING

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 or later versions. ETS application program: APEKEC2TP##.knxprod (## = release). Available languages: English, French, German, Italian
