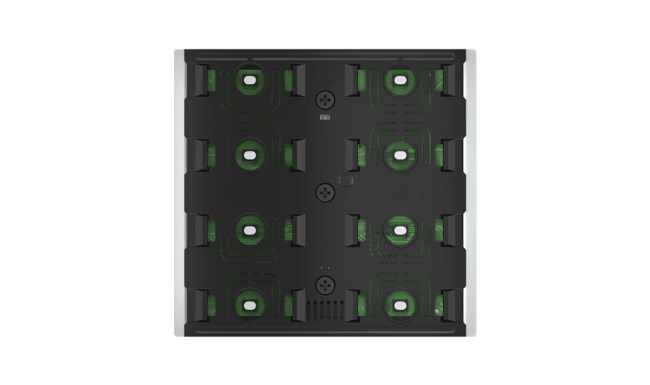

Ekinex EK-ED2-TP-RW-NF, Pushbutton 4-fold - red/white

Produktnummer: 10302729
Lagerbeholdning:

inkl. mva.

The 4-fold pushbutton of Ekinex® FF series commands loads on/off switching, controls the dimming of lighting devices, controls motor drives for shutters or executes any other programmable command and control function.

Description

The 4-fold pushbutton of Ekinex® FF series commands loads on/off switching, controls the dimming of lighting devices, controls motor drives for shutters or executes any other programmable command and control function. Thanks to the integrated temperature sensor, the pushbutton can work as a thermostat for a room or a zone. The LEDs can be chosen in the colour combinations blue / green or white / red. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is supplied by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.

Technical data
  • 30 Vdc power supply through KNX bus
  • Current consumption from bus < 15 mA
Delivery

Delivery includes a terminal block for connection to the bus, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart) and two pairs of fixing screws.

Accessories

The following accessories are available to be ordered separately:

  • square or rectangular rockers
  • square frame Form or Flank version
Code LED colours Mounting Side profile
EK-ED2-TP blue / green with square frame Form or Flank version black
EK-ED2-TP-RW red / white
EK-ED2-TP-BG-NF blue / green without frame (‘NF version)
EK-ED2-TP-RW-NF red / white
EK-ED2-TP-BG-NFW blue / green white
EK-ED2-TP-RW-NFW red / white



Functions / Features

  • 4-fold (possibility to configure up to 8 independent functions)
  • 4 freely programmable LEDs for each channel
  • 2 colour combination available for the LEDs (blue/green or red/white)
  • Integrated temperature sensor
  • Room thermostat function
  • Plastic casing
  • Wall-mounting installation on round or square wall box
  • Connection to bus line with KNX terminal block
  • Frontal programming pushbutton and LED
  • IP20 protection degree (installed)
  • Weight 80 g (with mounting support)

Configurationa and commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKED2TP##.knxprod (## = release). Available languages: English, French, German, Italian.
