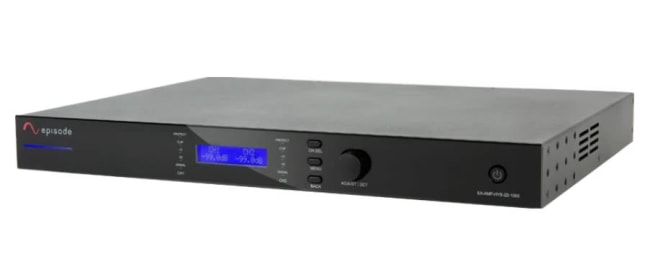

Episode EA-AMP-HYB-2D-1000, 70V/8-ohm IP-Enabled Amplifier | 500W x 2 Channels

Produktnummer: 10341488

inkl. mva.

EA-AMP-HYB-2D-1000 - Episode 70V/8-ohm IP-Enabled Amplifier

Why pay a premium for just a brand name? This high-power hybrid 70V/8-ohm digital amplifier with IP control comes with OvrC cloud management, versatile inputs/outputs, and a compact form factor. But don't be fooled by its small size – this amp packs a serious punch and has the build quality to last years in your rack. You’ll find this amp is right at home in so many applications, including churches, gyms, restaurants, landscape, and large distributed audio systems.


Channels 2-Channel
Power Output @ 4 ohm 300W per channel @ 8 ohm (1000W bridged)
500W per channel @ 4 ohm (2000W bridged)
700W per channel @ 2 ohm
500W per channel @ 70V
500W per channel @ 100V (230VAC only)
Power Consumption 230W Typical
1100W Max
Sensitivity Input 1.4Vrms, max power
Impedance Input RCA Analog input: 10kΩ
Balanced Analog input: 20kΩ
Signal to Noise Ratio 101dB A-weighted @ 1.4Vrms & 4Vrms input max
Total Harmonic Distortion (THD) Less than 1%
Frequency Response ± 2dB at 1/8th power (20Hz to 20kHz)
Audio Inputs / Outputs Bal. Analog Audio: 2x 3-pos. Phoenix-style pluggable screw term. block
Analog RCA: White jack (L Ch), Red jack (R Ch)
Spkr. Output: 2x 3 pos. Phoenix-style pluggable screw term. block (12-18 AWG)
12V Trigger 3.5mm mono jack
Dimensions (W x H x D) 43.1 x 4.5 x 30.5 cm
Rack Spacing 1U
Weight 12 lb
