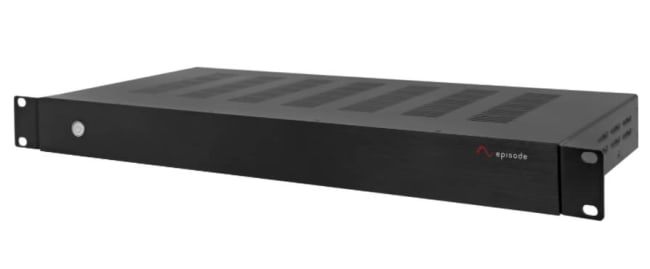

Episode EA-AMP-SUB-1D-300 Digital Subwoofer Amplifier | 300W x 1 Channel

Produktnummer: 10341490

inkl. mva.

EA-AMP-SUB-1D-300 - Episode® Digital Subwoofer Amplifier

The Episode EA-AMP-SUB-1D-300 Digital Subwoofer Amplifier delivers 300 watts of clean power at 4 ohms, making it the perfect companion for our in-wall subs. This single-channel amplifier features convenient EQ modes, and variable power-on options, all wrapped in a 1U chassis.



Handy Connections: RCA line level connections allow you to connect additional amplifiers, while the 12V trigger allows you to connect another 12V trigger device; the amps also have dual sub outputs in parallel configuration.

Add Bass to Every Room: Deliver incredible audio throughout the home by pairing this sub amp with Episode’s new Dynamic amplifiers - with dedicated subwoofer outputs per zone.

Rack Mount Option: Whatever your installation requires, you will be prepared. At only 1U tall (1.75”), these amplifiers come with removable rubber feet and rack ears for direct rack mounting.

Multiple Power-on Options: Want the amplifiers always on? Don't want them on until they sense a signal? No wait, you want them to be controlled via a 12-volt trigger, right? The beautiful part is all three options are available to complement the ease of installation.

Optimized Controls: A rear-mounted rotary dial for crossover, phase, and volume control enables you to optimize any system for ultimate performance.

Custom EQ Settings: EQ modes are provided for fast and simple selection of music or movies.

Cool Performers: At the heart of these units is a highly-efficient digital power supply. This cool-running technology produces clean, tight bass.

Subsonic Filter: A limiter circuit has been included at the input stage to protect the connected woofer(s) from harsh, damaging distortion that can not only ruin the listening experience, but the woofers themselves.


Channels 1
Power Output @ 4 ohm 300 watts RMS at 4 ohms
Power Output @ 8 ohm 150 watts RMS at 8 ohms
Sensitivity Input 140 mV for full output (L/LFE only driven), 300W, with level control set to max
Total Harmonic Distortion (THD) 0,10% THD+N 1W/2W 100 Hz
Frequency Response 30-200Hz (EQ Mode=Bypass)
Certifications TUV Listed and tested under for US and Canada
Dimensions  4.45 x 43 x 20.6;  5.3 x 48.2 x 20.6 cm  with rack mounts & feet
Weight 4.2 kg
Rack Spacing 1 U
Channels 1-Channel
