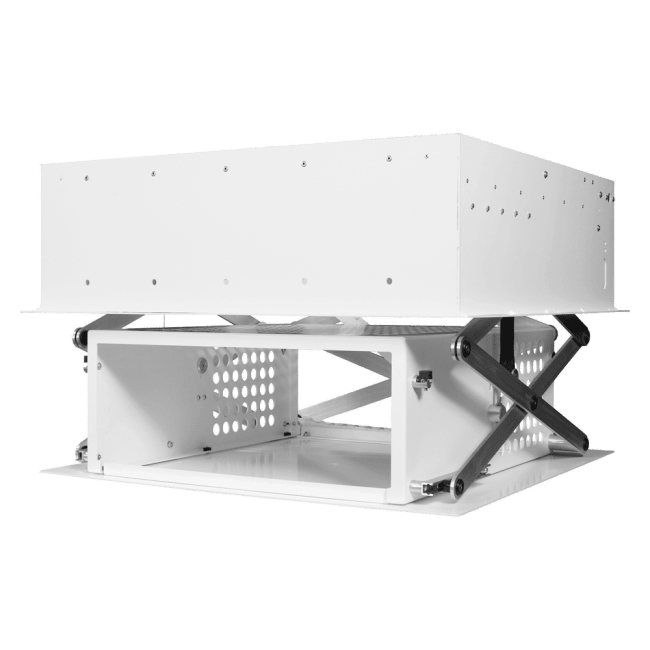

Future Automation PD3.5 - Projektorheis (stor)

Produktnummer: vm-pd35
Lagerbeholdning:
Fra:

inkl. mva.

Maximum Projector Size 560mm x 650mm x 235mm (WxDxH)

The Future Automation PD Projector Drop mechanism is the leading automated projector lift solution for home cinema installations. Its height efficient design, coupled with its adjustable drop distance makes the PD mechanism a favourite for leading audio visual installers around the world.

  • Range of drop distances available to suit varying ceiling heights
  • Three standard sizes with customisable sizing available
  • Supplied with IR, Contract Control, and RS232 control options
  • Made in house, in our dedicated facilities located in Great Britain and the USA
  • Slotted mounting system for universal projector mounting



TECHNICAL SPECIFICATION



PRODUCT CODE: PD3.5

CONTROL OPTIONS: RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING: 59DB
DEPTH WITHIN CEILING: 261MM (10.27")
FINISH (CUSTOM AVAILABLE): WHITE PAINT - RAL9910
MAX PROJECTOR SIZE (WXDXH): 560 X 650 X 235MM (22.04 X 25.59 X 9.25")
MAX WEIGHT: 45KG (99LBS)
MOVEMENT TYPE: MOTORISED
POWER CONSUMPTION: 110W
POWER SUPPLY: 240V OR 110V
TILT: N/A
TRAVEL FROM CEILING: 740MM (29.13") - STANDARD
1200MM (47.24") - AVAILABLE
SHIPPING DIMENSIONS: 120 x 100 x 50cm
(47.24 x 39.37 x 19.68")
SHIPPING WEIGHT: 50kg (110lbs)
