Key Digital KD-DA1x8, 1x8 4K/18G HDMI distribution amplifier

Produktnummer: 10302508
Lagerbeholdning:

inkl. mva.

1x8 4K/18G HDMI Distribution Amplifier, HDR10, HDCP2.2


  • Digital Distribution: 1 HDMI Source to 8 HDMI Displays
  • Ultra HD/4K Resolution: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
  • HDCP Licensing: Compliancy up to HDCP 2.2 and backward compliant
  • 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
  • HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
  • 3D Ready: Capability to pass 3D stereoscopic signal formats
  • Resolution Support: SD, HD, and VESA up to UHD/4K
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
  • Full Buffer™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™ and Dolby® Atmos
  • Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
  • HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI
  • I2C Communication: EDID and HDCP buffering from Display to Source
  • CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels

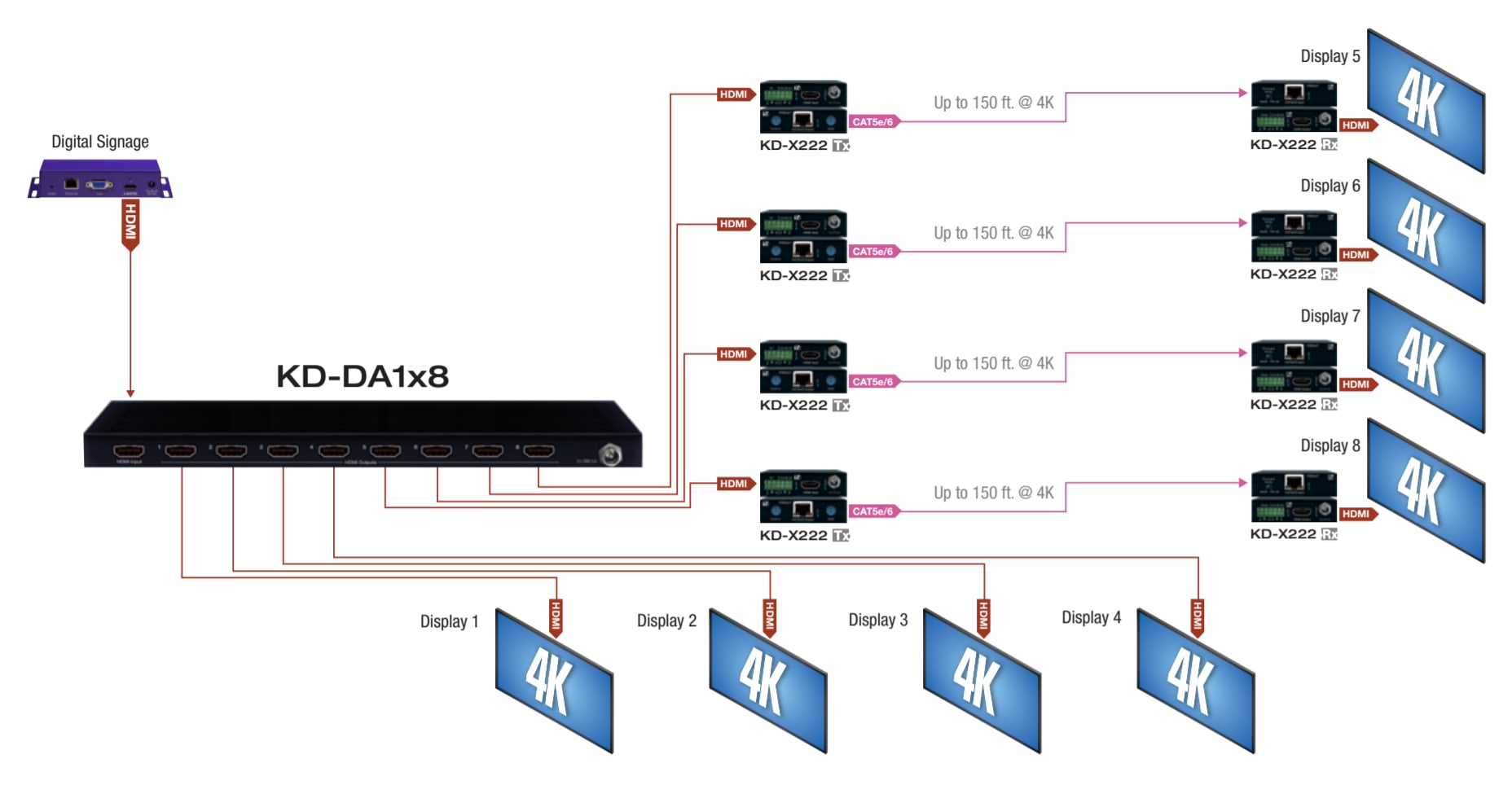

System design example
