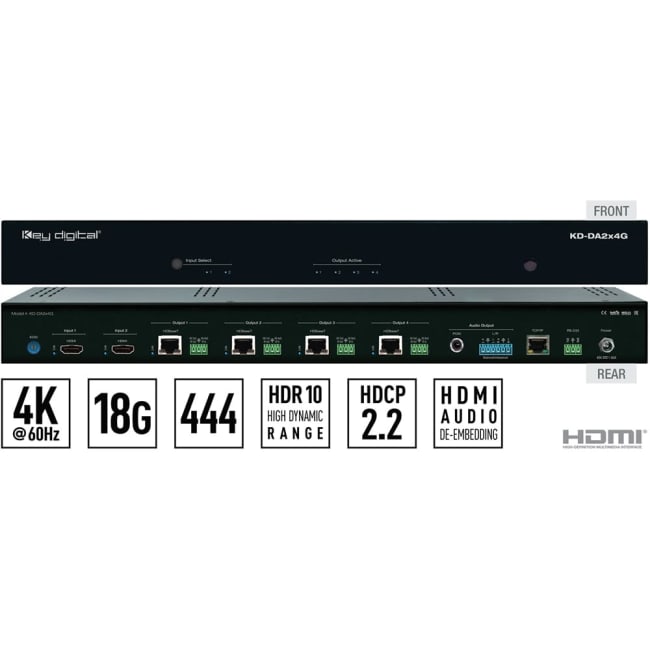

Key Digital KD-DA2x4G, 4K HDMI distribution amplifier & switcher

Produktnummer: 10303791
Lagerbeholdning:

inkl. mva.

2x4 4K 18G POH HDBaseT HDMI Distribution Amplifier & Switcher Kit with Audio De-Embedding (Includes KIT 4 Rx Extenders 4K/70 Meters 1080P/100 Meters)


  • HDMI Switching & Distribution: 2 HDMI sources to 4 HDBaseT outputs
  • Power over HDBaseT: All included Rx units powered by the main unit
  • Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Signal Extension: For resolution and cable quality
    • 4K/UHD: Up to 250 ft. (76m) using CAT5e/CAT6/CAT6A/CAT7
    • 1080p: Up to 328 ft. (100m) maximum
  • 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
  • High Dynamic Range (HDR) Format Support: HDR10 and Dolby® Vision
  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
  • Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
  • Audio De-embedder: Audio of the selected HDMI input is de-embedded at the Coax digital (PCM) and Analog L/R balanced/unbalanced connectors
  • Control Pass-Thru: 4 three pin phoenix connectors for bi-directional IR or RS-232 for each HDBaseT output. 4 IR sensors and IR emitters included.
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from an Output/Display 1
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
  • CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
  • Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
  • Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® iOS App and Key Digital Management Software™ Pro (KDMS™ Pro) PC Software

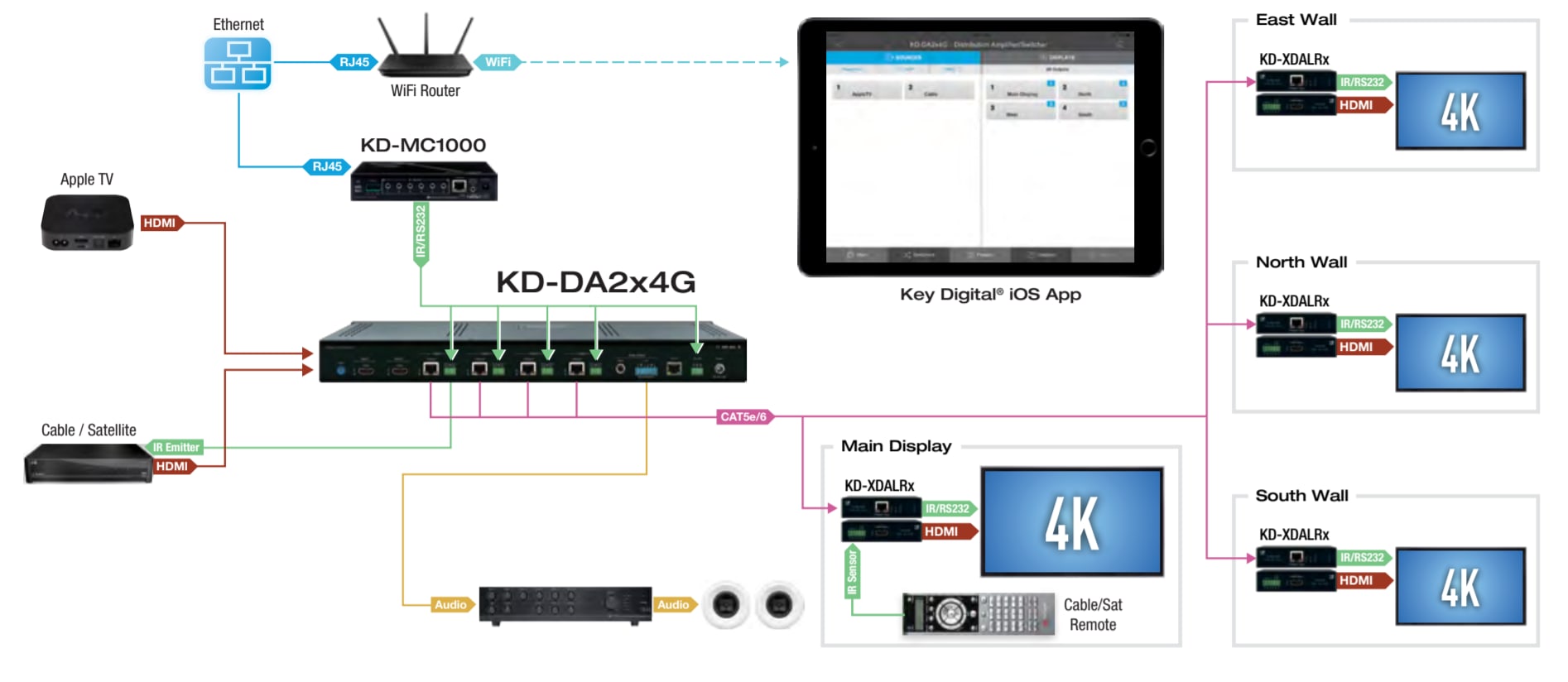

System design example
