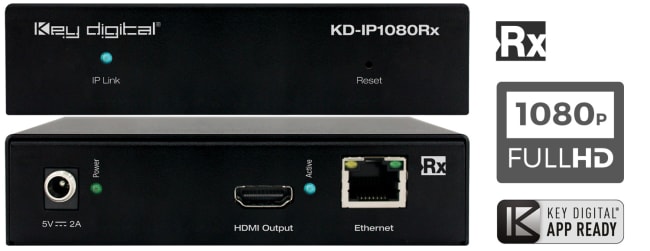

Key Digital KD-IP1080RX, Enterprise AV over IP RX) Transmitter

Produktnummer: 10302448
Lagerbeholdning:

inkl. mva.

HDMI over IP with POE (Rx) Receiver with Redundant Power Connection


  • Connectivity: Can be connected through a network IP switch or point-to-point
  • H.264 Compression: Ideal standard for large video distribution applications
  • Low-bandwidth System: Supports managed 100BaseT or Gigabit network switches
  • Custom System: Add Tx and Rx extenders to an existing system to expand HDMI over IP up to 1024 Tx units and unlimited amount of Rx units
  • Power Over Ethernet: Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch
  • HDMI Pass-through: Tx unit support HDMI Pass-through to receive video or extract audio on the transmit side
  • Alternative Extension Methods: Enabled by low-bandwidth data streaming technology
    • Wifi Extender: Up to 100 ft.
    • IP over Coaxial: Up to 1000 ft.
  • Resolution Support: Supports up to 1080p@60 (2.25Gbps) and compatible with DVI1.0/HDMI/HDCP1.x
  • Audio Format: Supports 2ch PCM at 44.1/48kHz
  • Data Stream Bandwidth: < 15Mbps.
  • Signal Extension: Up to 400 ft. @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable
  • Web Control Interface: Reduces installation time and provides basic video setup.
  • Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID: EDID libraries readily available to provide the best setup per source
  • Deep Color Support: Up to 12 bits/color
  • TMDS re-clocking: Support for long HDMI runs using Key Digital® HDMI cables
  • Licensing: Fully licensed and compatible with all HDMI and HDCP technologies
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
  • Source/Display Control: Integrate with KD-CX800 to add 3 IR, RS-232 or Trigger ports
  • Key Digital App ReadyKey Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
  • Control App Stabilization: One KD-CX800 or KD-MC1000 recommended to act as a gateway and increase reliability from KD-App control

System design example
