Key Digital KD-MS8x8G, 8x8 4K/18G HDMI matrix switcher

Produktnummer: 10303028
Lagerbeholdning:

inkl. mva.

8x8 4K/18G HDMI Matrix Switcher.

Forventet tilgjengelighet igjen i November 2023.



  • HDMI Matrix Switching: 8 HDMI sources to 8 HDMI outputs
  • Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
  • Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
  • Independent Audio and Video Matrix: Output HDMI and Audio ports may switch together or independently
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID: Internal library with 15 internal EDID configurations per input, in addition to native EDID data for any Output/Display
  • TMDS re-clocking: Long HDMI connectivity support with Key Digital® HDMI cables
  • Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos
  • Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
  • Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® iOS App and Key Digital Management Software™ Pro (KDMS™ Pro) PC Software

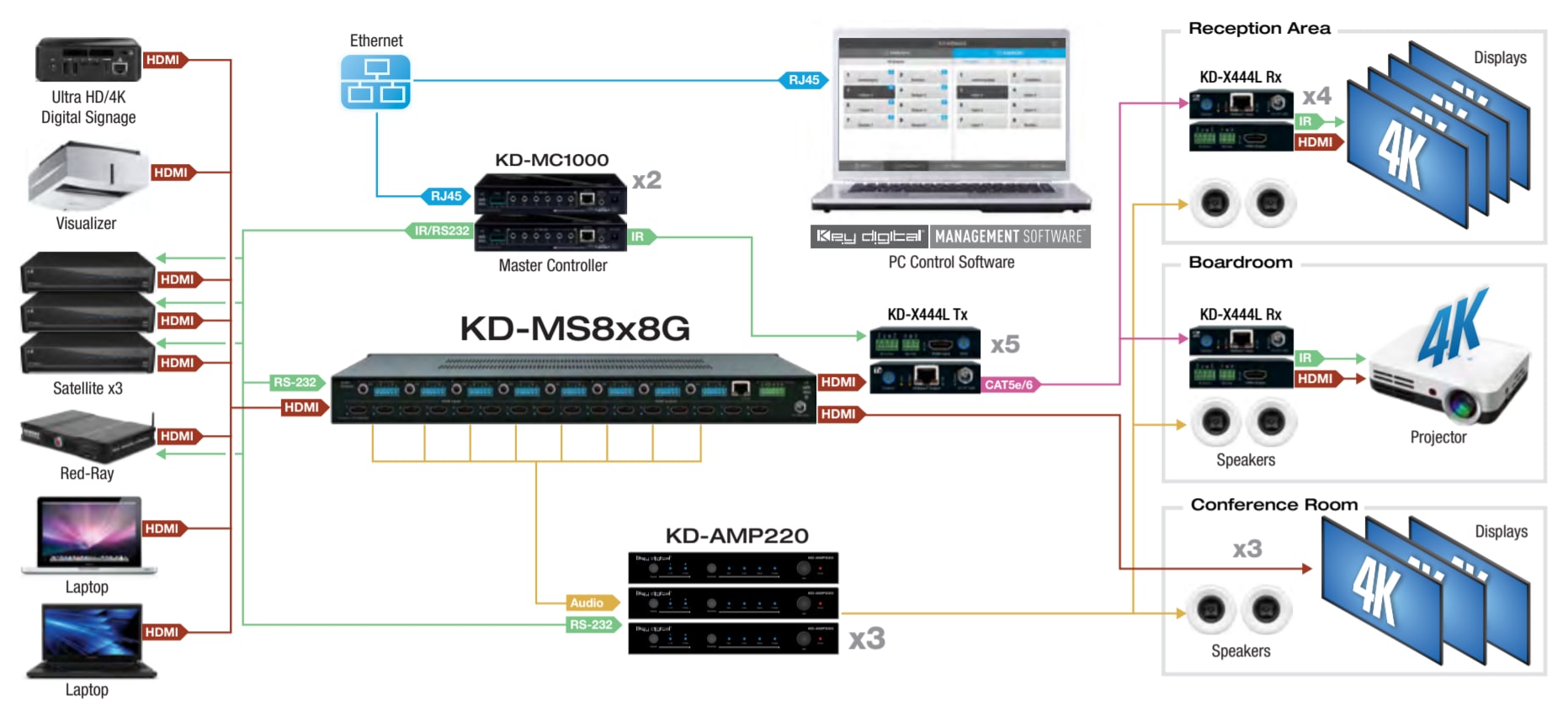

System design example
