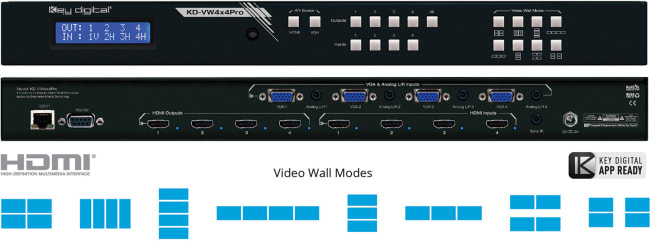

Key Digital KD-VW4x4Pro, 4x4 video wall processor

Produktnummer: 10302392
Lagerbeholdning:

inkl. mva.

4x4 Outputs Video Wall Processor, supports Seamless Matrix Switching


  • HDMI Matrix Switching: 4 HDMI/Analog sources to 4 HDMI outputs, independent when in matrix mode
  • Seamless Switching: Un-interrupted screen transitions during source selections
  • Video Wall Processing: Transform consumer and professional displays into a video wall with eight video wall modes
    • Horizontal (4): 1x4 Rotated, 1x4, 1x3, and two sets of 1x2
    • Vertical (3): 4x1, 3x1, and two sets of 2x1
    • 2x2
  • Bezel Control: Create a fluid screen transition by removing pixels from top, bottom, left, and right border independently
  • EDID: Internal library with 5 default EDID configurations for each input, in addition to native EDID data for any Output/Display
  • Full Buffer™ Technology: Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation
  • TMDS re-clocking: Support for long HDBaseT/CAT5e/6 or HDMI connections and many layers of connectivity.
  • Deep Color Support: Up to 12 bits/color
  • Control: Front panel buttons, Serial IR, Optical IR, RS-232, and TCP-IP, including video wall mode select, matrix switching, EDID Control and discrete on and off via IR
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
  • Key Digital App ReadyKey Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App

System design example
