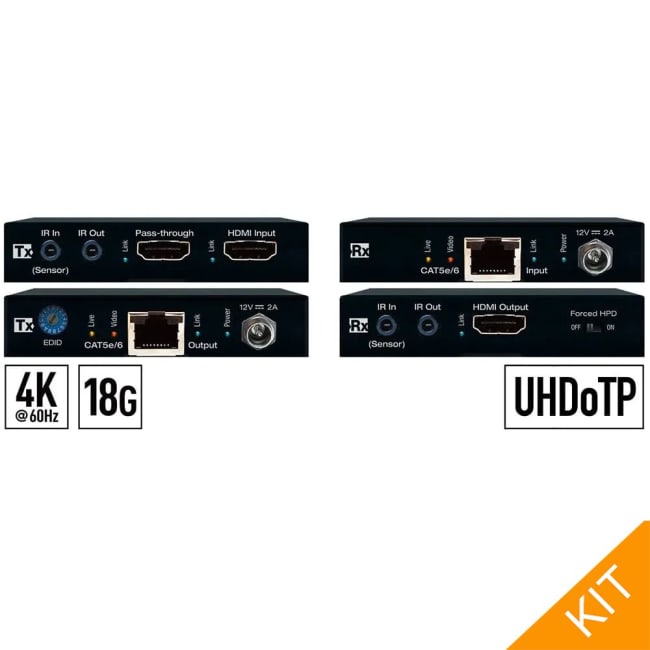

4K with HDR HDMI Extender Tx + Rx Kit. Extends 4K 18G to 35m (115ft), 1080p to 50m (164ft). 4K to 1080p Down Convert, HDMI Pass Thru, Power over CAT, 2 Way IR, Handshake Control, Forced HPD
UHDoTP via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length
4K Resolution Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate UHDoTP transmission channel
4K to 1080p Down Convert: Optional resolution conversion applied at UHDoTP output provides added integration options in retrofit installations as well as added distance performance
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
Flexible Power over CAT (PoC): Only one power connection needed. Tx may power Rx, or Rx may power Tx.
Low Profile: Slim chassis design
Signal Extension: For resolution and cable quality
4K/UHD: Up to 35m (115ft) using CAT5e/6
1080p: Up to 50m (164ft) maximum
HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:2:2/12 bit
EDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to Rx
Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected display/output device
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID handshake control, and Hot Plug Detection control
IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
HDMI Pass-Through: Enables connection to local monitor or AV Receiver.
Surround Audio Support: On HDMI pass-thru and UHDoTP outputs:
HDMI Pass-Thru: Supports Dolby®, Dolby® TrueHD, DTS™ and DTS-HD™ (formats up to 7.1)
UHDoTP Output: Supports Dolby®, DTS™ (formats up to 5.1/6.1)
