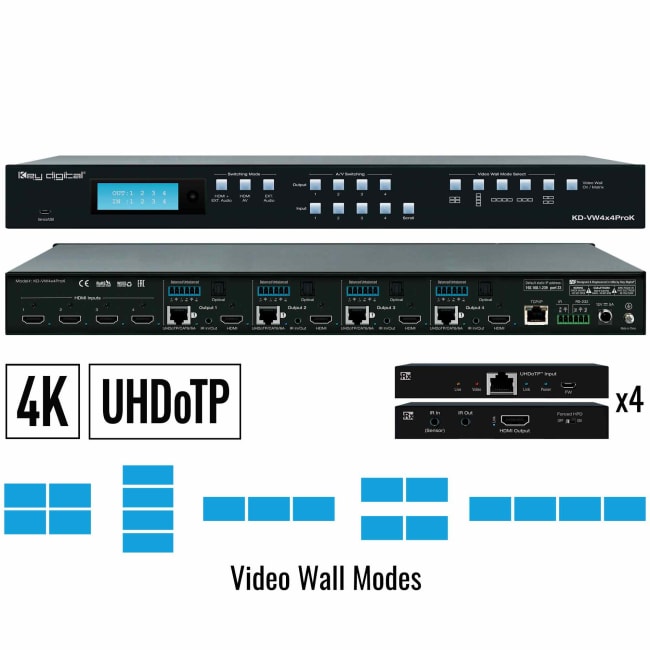

Key Digital KD-VW4x4ProK, Video Wall Processor Matrix

Produktnummer: 10341240

inkl. mva.

Key Digital KD-VW4x4ProK er en 4 HDMI-inngang med 4 HDMI + 4 UHDoTP speilvendt videoveggprosessor og sømløs matriseveksler med uavhengig lydruting.

KD-VW4x4ProK er perfekt for videovegg- og visningsapplikasjoner i stort format som på bar og restauranter, sport og spillbarer, digitale skilt, underholdningssentre, museer, e-sport og mer.

KD-VW4x4ProK er spesielt utviklet for å kostnadseffektivt lage videovegger med forbrukerpaneler og monitorer.

Bezel-kompensasjon lar bildet utvides utenfor skjermen for å skape flytende skjermovergang og med fem oppsett for videovegger (2x2, 4x1, 3x1, 2 speilet sett på 2x1 og 1x4) gjør KD-VW4x4ProK til det ideelle valget for å bygge videovegger i alle bruksområder og prisklasser.


  • Video Wall Processing: Transform consumer and professional displays into a video wall with five video wall modes: 2x2, 4x1, 3x1, 2 sets of 2x1, 1x4
  • Seamless Switching: Un-interrupted screen transitions during source selection


  • Built-In UHDoTP Tx with PoC: 4 included KD-EXMLVRx units are powered by KD-VW4x4ProK


  • Dual Video Wall / Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output show same AV signal at same time for a total of 8 possible displays connected


  • Video Resolution: Up to 3840 x 2160p 4:2:0 at 60fps supported on inputs & 3840 x 2160p 4:4:4 at 30fps supported on outputs


  • Panel Flip: Enables use of consumer displays by mounting top row upside down and conjoining narrow frame sides.
  • Bezel Compensation: Create a fluid screen transition by removing pixels from top, bottom, left and right border independently


  • Video Resolution: Up to 3840 x 2160p 4:2:0 at 60fps supported on inputs & 3840 x 2160p 4:4:4 at 30fps supported on outputs


  • Signal Extension over CAT:


    • 4K/UHD: Up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP


    • 1080p: Up to 50m (164ft) using CAT5e/6, up to 60m (197ft) using CAT6A STP


    • Minimum: 5m (17ft) CAT5e/6 cable length required for all resolutions


  • Text Overlay: Assigned name of each source may be displayed in each window. 16 Characters maximum with variable sizing and location settings.


  • 4K Down-Convert: Integrate 4K sources with legacy 1080p & 720p displays


  • HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2


  • Built-In Test Patterns: 9 selectable test screens help expedite installation


  • IR Extension: Extend IR via Rx units to control displays or collect IR from remote to control a source at matrix


  • Web UI: Control AV routing and other basic functions from any web browser


  • Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs


  • Dolby Digital® & DTS™ Audio: Supports 2-channel and multi-channel surround formats up to 5.1 Dolby® / DTS™


  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID handshake to source


  • EDID Management: Internal library with 8 EDID AV handshakes per input, in addition to ability to copy from any connected display / output


  • TMDS Re-clocking: Supports long HDMI connectivity using Key Digital® HDMI cables


  • Deep Color Support: Up to 8 bits/color


  • Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control


  • Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App


  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
