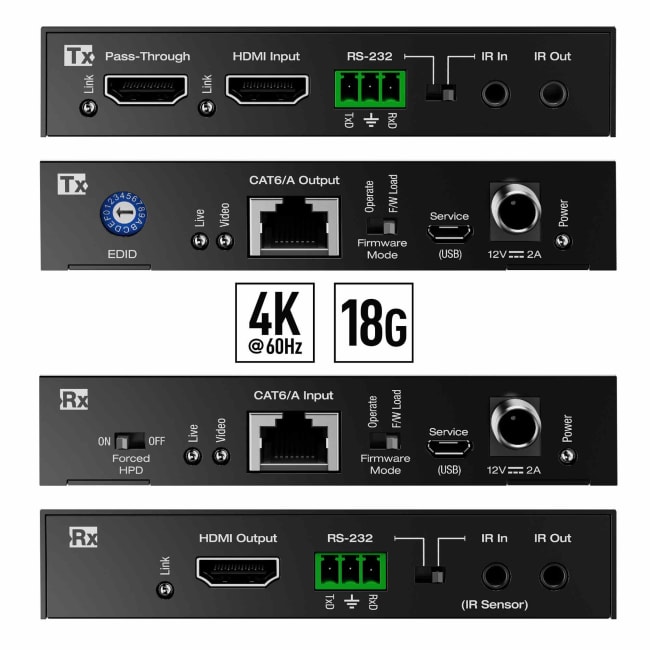

Key Digital KD-X444LP, HDMI over 70m CAT6 Extender Set

Produktnummer: 10363376
EAN: 815996022178
Lagerbeholdning:
Key Digital
inkl. mva.

KD-X444LP is a 4K/UHD 18Gbps, HDCP2.2 compliant HDMI over CAT6 Transmitter Plus Receiver. The HDMI extender set extends HDMI signals with the latest standards in resolution, HDR, and Chroma over a single CAT6 cable.

  • Single CAT5e/6 UTP/STP Extension: Fully automatic equalization, and amplification depending on cabling length

  • 4K Resolution Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

  • Flexible Power over Cat (PoC): Only one power supply needed. Connect at Tx or Rx unit.

  • Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate transmission channel

  • Low Profile: Super slim chassis design

  • Signal Extension: For resolution and cable quality

    • 4K/UHD (18G) with CAT5e/6: Up to 230ft / 70m

    • 4K/UHD (18G) with CAT6A STP: Up to 328ft / 100m

    • 1080p with CAT5e/6: Up to 230 ft / 70m

    • 1080p with CAT6A: Up to 328ft / 100m

  • 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension.

  • HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels

  • HDCP 2.2: Compliancy up to HDCP 2.x and backward compliant

  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

  • IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block

  • Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units

  • RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector

  • Full Buffer Technology: Key Digital’s proprietary suite of EDID, HDCP, TMDS, and HPD management to overcome Pro AV installation obstacles

  • EDID Management: Internal library with 14 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from CAT5e/6 or HDMI pass-thru outputs

  • HDCP Authentication: HDCP sources are authenticated by HDCP key on transmit unit, for one-to-one topology

  • Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected display/output device

  • TMDS Re-Clocking: Re-generation of TMDS (AV signal) channel data at Transmit unit for brand new AV signal

  • Surround Audio Support: on HDMI pass-thru and UHDoTP outputs:

    • HDMI Pass-Thru: Supports Dolby®, Dolby® TrueHD, DTS™ and DTS-HD™ (formats up to 7.1)

    • CAT5e/6 Output: Supports Dolby®, DTS™ (formats up to 5.1/6.1)
