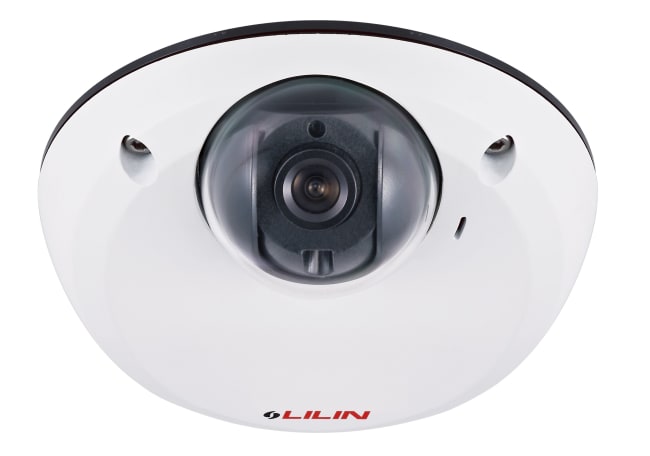

Fixed dome LD2222 in the L series is featuring built-in Sense Up+ technology to deliver stunning video in low-light conditions. Utilizing intelligent image signal processing, 2D WDR function, AGC control, and 3D noise reduction, the combination successfully delivers the ultimate low-light image without motion blur. Support with PoE, privacy mask, white balance, and minimum illumination 0.2 Lux at F1.6 Low Light Mode.
With built-in white balance, back light compensation, and IVS features such as audio and motion detection to deliver quality videos.
Features
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10
- H.264 and Motion JPEG triple video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital zoom supported
- Audio / Motion detection alarm function
- Built-in highly sensitive microphone
- One-way audio supported
- ONVIF supported
Model | LD2222E2 |
Pick Up Element | 1/2.7" CMOS image sensor |
Effective pixels | 1920 (H) × 1080 (V) = 2,073,600 (pixel) |
Video Compression | H.264 , Motion JPEG |
Resolution | 1080P(1920 × 1080), 720P(1280 × 720), D1(720 × 480), CIF(352 × 240) |
Frame Rates | H.264 : up to 15 fps @ 1920 x 1080 , 30fps @ 1280 x 720 , 30fps @ 720 x 480 / Motion JPEG : up to 15 fps @ 1920 x 1080 , 30 fps @ 720 x 480 , 30 fps @ 352 x 240 |
Lens | 2.8mm |
Iris | F1.8 |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
Video bitrate | 128Kbps 〜 8Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
Scanning System | Progressive Scan |
Min. illumination/Low Light Mode (Colour) | 0.4 Lux at F1.8 |
White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 |
Back Light Compensation (BLC) | On / Off |
Electrical Shutter | 1/30(1/25)s to 1/8000s |
Sense Up | Off / 1 frame / 2 frames / 3 frames / 7 frames |
Sense Up+ | Yes |
Auto Gain Control | 36 dB variable gain |
3D Noise Reduction | Off / 1 to 32 selectable |
2D WDR | Off / Auto / x2 / x3 / x4 |
Privacy Masking | Four independent areas |
Other functions | Sharpness, Image flip, Image mirror, Hue |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
Max number of online users | 10 user accounts available |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | Yes |
OSD (On-Screen Display) | Text overlay for date, time and camera name |
Alarm event triggers | Motion / Audio detection |
Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / SNMP Trap / Push Service notification |
CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
Firmware | Firmware upgrade via HTTP |
Network Interface/Ethernet | 10Mbps / 100Mbps Base-T, RJ-45 |
CE | Yes, EMI CLASS A |
FCC | Yes, EMI CLASS A |
OS requirement | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 |
Web browser | Microsoft® Internet Explorer® 6.0 and later |
CPU requirement | Intel Pentium 4 1.8GHz or above |
RAM requirement | 1GB or above, Independent Display Card |
Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
Mobile phone | Integrated to LILIN mobile app (LILINViewer) ; iPhone, iPad, Android support |
Video Management | ONVIF Profile S / LILIN NAV 1.0 / Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 2.6.32 |
Audio | Two-way Audio, G.711 u-law / PCM, Built-in Microphone |
Operating temperature | -25°C – +50°C (-13°F – 122°F) |
Chip size | 5.856mm (H) x 3.276mm (V) |
Dimensions | Ø105 x 39mm |
Weight | 250g approx. |
Power Supply | DC12V ±10% 。PoE (IEEE 802.3af compliant) |
PoE | PoE , IEEE 802.3af |
Power Consumption | DC12V, 4.5W / PoE, 5W |
