Future Automation UBL, Under Bed Lift Mechanism - 32 to 55 Screens

Produktnummer: 10301890
Lagerbeholdning:

inkl. mva.

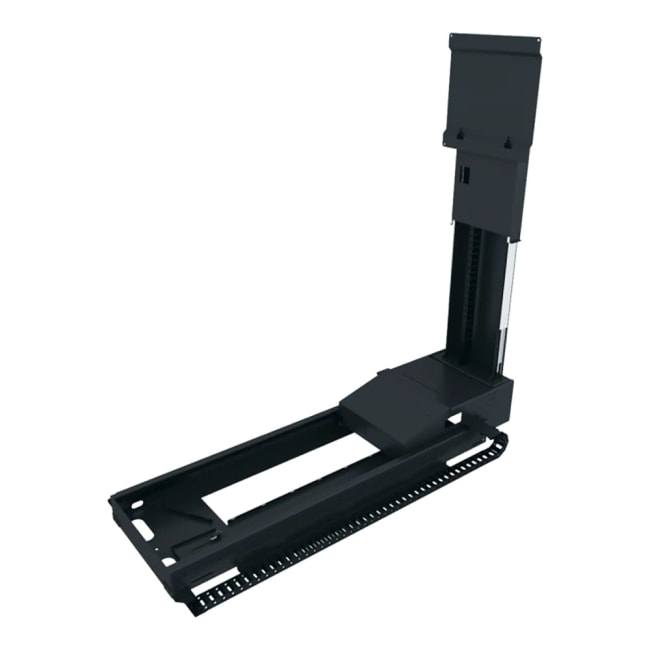

The Under Bed TV Lift is a unique and impressive mechanism that stores a flat screen under a bed, negating the need for cabinetry at the foot of the bed.



Compact and sleek in design, the Under Bed TV Lift offers an alternative to traditional flat screen TV lifts and with its pop up design, helps create a different dimension to the interior design of a room.

The Under Bed Lift is available in the UBL-EBF form with a motorised flap which opens before the screen is revealed and closes after it is concealed.

  • Smooth and efficient movement, combined with a near silent motor, make this lift ideal for residential installation
  • In built cable management chain ensures cables are securely stowed for safe mechanism operation and a neat finish
  • Supplied as a fully built unit the UBL ships ready to be integrated with no self-assembly required
  • When closed the screen and mechanism are completely hidden under the bed, removing the need for furniture or a visible screen when not in use

TECHNICAL SPECIFICATION

PRODUCT CODE UBL UBL-EBF
CONTROL OPTIONS RS232 / IR RS232 / IR
DECIBEL RATING 50DB 50DB
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005
FLAP TYPE NONE MOTORISED FLAP UNIT
MAX SCREEN SIZE (H X W X D) 800 X 1250 X 70MM (31.49 X 49.21 X 2.75") 800 X 1250 X 70MM (31.49 X 49.21 X 2.75")
MAX WEIGHT 40KG (88LBS) 40KG (88LBS)
MIN HEIGHT REQUIRED 255MM (10.03") 320MM (12.59")
MIN LENGTH REQUIRED 1800MM (70.86") 1800MM (70.86")
MOVEMENT TYPE MOTORISED MOTORISED
POWER CONSUMPTION MAX 100W MAX 100W
POWER CONSUMPTION (STANDBY) 1.5W 1.5W
SHIPPING INFORMATION
SHIPPING DIMENSIONS 166x81x51cm (65.35 x 31.88 x 20.07") 166x81x51cm (65.35 x 31.88 x 20.07")
SHIPPING WEIGHT 114kg (251lbs) 135kg (298lbs)
