Future Automation UBSL

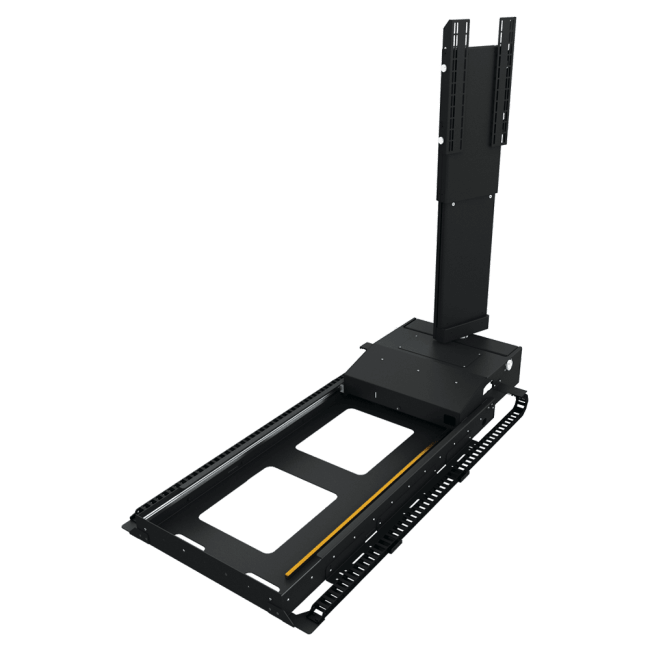

The Under Bed TV Lift & Swivel is a unique and impressive mechanism that stores a flat screen under a bed then swivels when in the up position to allow multiple viewing angles, negating the need for cabinetry at the foot of the bed.

Compact and sleek in design, the Under Bed TV Lift offers an alternative to traditional flat screen TV lifts and with its pop up design, helps create a different dimension to the interior design of a room.

The Under Bed Lift is available in the UBLS-EBF form with a motorised flap which opens before the screen is revealed and closes after it is concealed.

• Smooth and efficient movement, combined with a near silent motor, make this lift ideal for residential installation
• In built cable management chain ensures cables are securely stowed for safe mechanism operation and a neat finish
• Supplied as a fully built unit the UBLS ships ready to be integrated with no self-assembly required
• When closed the screen and mechanism are completely hidden under the bed, removing the need for furniture or a visible screen when not in use

TECHNICAL SPECIFICATION

CONTROL OPTIONS: RS232 / IR (RF AVAILABLE)
DECIBEL RATING: 50DB
FINISH (CUSTOM AVAILABLE): BLACK PAINT - RAL 9005
FLAP TYPE: NONE
MAX SCREEN SIZE (H X W X D): 800 X 1250 X 70MM (31.49 X 49.21 X 2.75")
MAX WEIGHT: 40KG (88LBS)
MIN HEIGHT REQUIRED: 255MM (10.03")
MIN LENGTH REQUIRED: 1800MM (70.86")
MOVEMENT TYPE: MOTORISED
POWER CONSUMPTION: MAX 100W
POWER CONSUMPTION (STANDBY): 1.5W
SHIPPING DIMENSIONS: 166x81x51cm (65.35 x 31.88 x 20.07")
SHIPPING WEIGHT: 129kg (284lbs)
