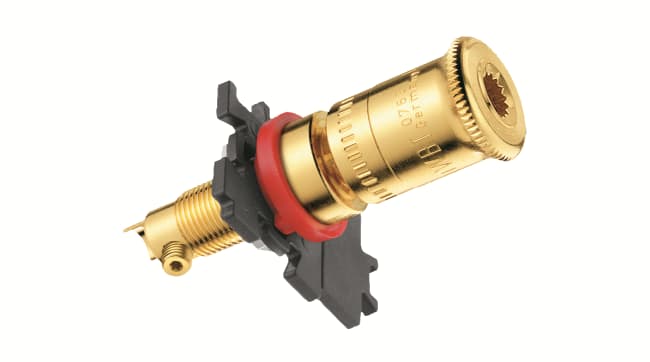

WBT-0763, classic, høyttalerterminal, à 4 stk

Produktnummer: 100068
Lagerbeholdning:

inkl. mva.

Classic høyttalerterminal, à 4 stk.

  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection
  • 24 carat multi layer gold plating
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system



The clamping nut is designed to provide a perfect grip. The gold-plated surface prevents any type of corrosion.

Outer connection
>> 4 mm banana plug

A 4 mm banana plug can be connected in the front part of the clamping nut.

>> Spades and crimped cable ends (up to 6 mm²/9 AWG)
You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection
Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. The connections can be soldered or crimped.
For soldered connections, WBT recommends the surface-friendly silver solder WBT-0800.
For crimp connections, an additional T.6 Torx screw is required.

Mounting
Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0763 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.
(WBT-9404 is supplied with each end consumer package, but in general needs to be ordered separately.)

Explanatory notes:

Hint for OEMs
Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Specifications:

Conductor cross section (max.): outside: 6 mm² (9 AWG)
inside: 10 mm² (7 AWG)
Connection technology: outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
inside: crimping (T.6 Torx screw required) or soldering
Wall thickness: 0.1 - 10 mm
Identification: red, white or black
Installation: with the spacer WBT-9404 also as a double terminal
Recommended tool:
  • Torx T.6 wrench WBT-0488
  • Torque screwdriver WBT-0481 for professional OEM mounting
  • Crimping pliers WBT-0403
    also see crimping set WBT-0411
