Key Digital KD-PS42, Presentation Switcher

Produktnummer: 10303770
Lagerbeholdning:

inkl. mva.

4K/18G Presentation Switcher with 4 Inputs (HDBaseT, 3x HDMI), 2 Mirrored Outputs (HDBaseT, HDMI), Audio De-Embed, IR, RS-232, IP, CEC Manager™. Includes Rx.

  • Presentation Switcher Kit:  Includes KD-PS42 and KD-X40MRx.  Add KD-X2x1WDTx wall plate HDBaseT transmitter for plug-in on walls, floor and table boxes
  • Presentation Switching: 3 HDMI, 1 HDBaseT source selection by push button, IP, RS-232, IR, auto switching, or trigger control.
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
  • CEC Manager™:  Power, volume, and muting controls of the connected display/projector without any additional control wiring.  Selection of desired CEC command recipient.
  • KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
  • Audio De-embedding:  Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors.
  • KD-AMP220 Control Mode:  Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
  • Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-PS42
  • Installation: Half-rack width with rack mounting ears included.
  • Signal Extension: For resolution and cable quality
    • 4K/UHD (18G): Up to 40m / 131ft
    • 1080p: Up to 70m / 230ft
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
  • RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
  • Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
  • Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

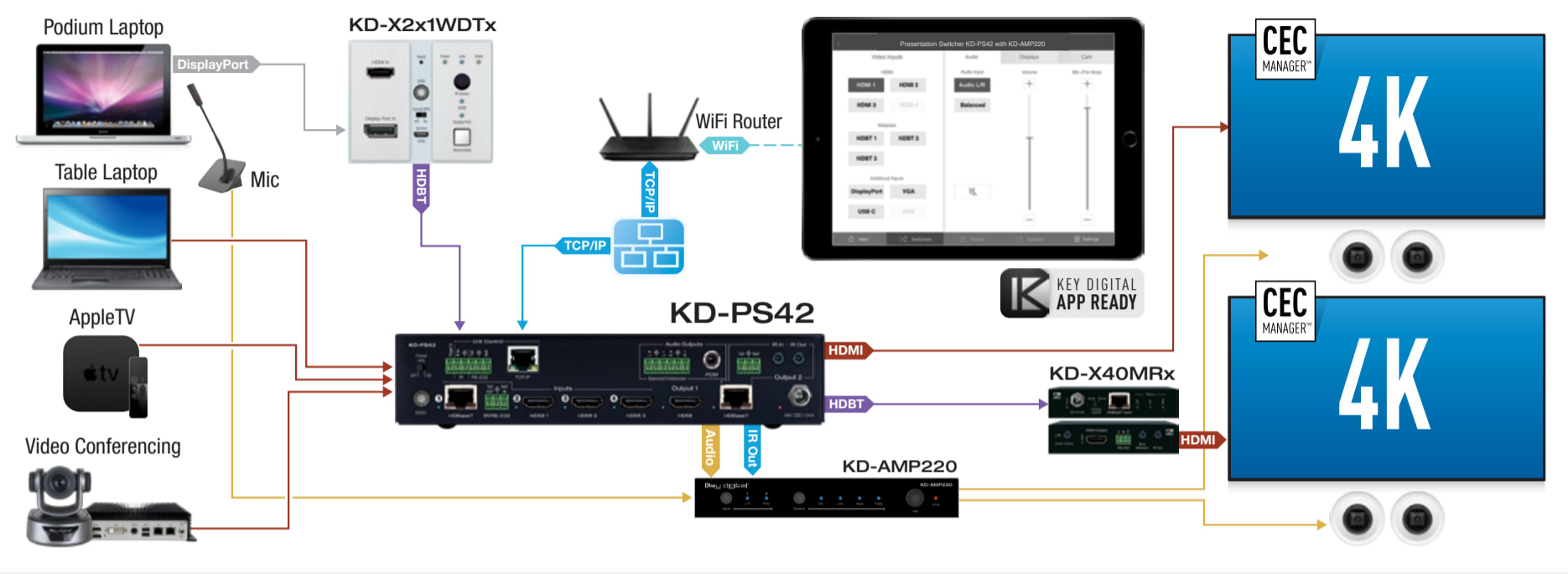

System design example
