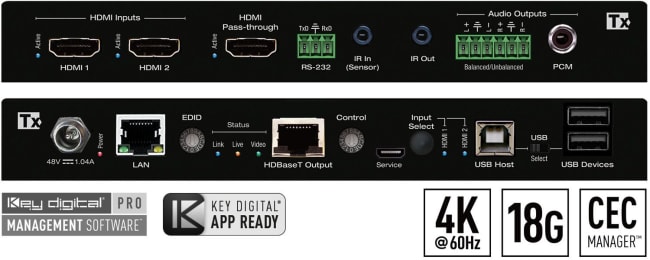

Key Digital KD-PS22UTx, 4K/18G 328ft (100m) HDMI over HDBaseT Extender

Produktnummer: 10341650

inkl. mva.

4K 18G 328ft (100m) HDMI over HDBaseT Extender, 2x1 Switcher with 2 HDMI Inputs, 2 Mirrored Outputs (HDBaseT, HDMI), USB 2.0, LAN, Audio De-Embed, IR, RS-232, IP Control, PoH, CEC Manager™. Tx Only.


  • Presentation Switching: 2 HDMI Source selection by push button or IP control
  • Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switchers
  • Soft-Codec Enabling System: USB Host + Device ports on wall plate and chosen Rx / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
  • KDPlug & Present: Add KD-CX800 to build programming-free automation system for room display on / off, screen control, auto switching, KD-CAMUSB PTZ camera, KD-AMP220 amp with mic mix, and common video source control
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • ARC / eARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
  • Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate HDBaseT transmission channel
  • 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
  • Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
  • KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10: More life-like images through a greater range of luminance levels
  • Power Over HDBaseT: Unit powered by Rx/Presentation Switch unit
  • Signal Extension: For resolution and cable quality
  • 4K/UHD (18G): Up to 100m / 328ft
  • 1080p: Up to 150m / 492ft (Long Range Mode)
  • Long Range Mode: Extends 1080p signals up to 152m (500 ft.) using CAT5e/6 (UHD/4K not supported)
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
  • IR Bi-Directional control: Tx supports IR input via the included IR sensor and output via the included IR emitter
  • RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
  • Unit Control Mode: Provides TCP/IP control and status of/from Tx unit
  • Surround Sound Audio: Supports Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™ multi-channel audio formats
  • Control System Support: Key Digital® App Ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Key Digital KD-CAMUSB, PTZ USB Camera

PTZ USB Camera IR RS-232 Visca Controllable

Key Digital KD-UPS52U, 4K/18G USB/Universal Presentation switcher

4K/18G USB/Universal Presentation Switcher with 5 Inputs (HDBaseT, 2x HDMI, DP, USB-C), 2 Mirrored Outputs (HDBaseT, HDMI), LAN, ARC, Audio De-Embed, IR, RS-232, IP Control, CEC Manager™. Includes Rx.

Key Digital KD-X100MRx, 4K/18G HDBaseT Rx

4K/18G HDBaseT Rx (100m) with USB, LAN, ARC, L/R Audio In, L/R Audio Output De-Embed, IR, RS-232 (Receiver Only)

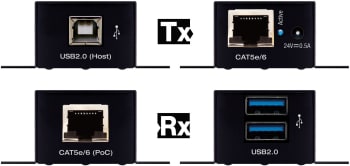

Key Digital KD-XUSB2, USB 2.0 over CAT
