Key Digital KD-UPS52U, 4K/18G USB/Universal Presentation switcher

Produktnummer: 10303769
Lagerbeholdning:

inkl. mva.

4K/18G USB/Universal Presentation Switcher with 5 Inputs (HDBaseT, 2x HDMI, DP, USB-C), 2 Mirrored Outputs (HDBaseT, HDMI), LAN, ARC, Audio De-Embed, IR, RS-232, IP Control, CEC Manager™. Includes Rx.


  • Presentation Switcher Kit: Includes KD-UPS52U and KD-X100MRx. Add KD-X4x1WUTx wall plate HDBaseT Tx for plug-in on walls, floor and table boxes

  • Presentation Switching: 1 HDBaseT, 2 HDMI, 1 Display Port, 1 USB-C source selection by push button, IP, RS-232, IR, auto switching, or trigger control.

  • Soft-Codec Enabling System: USB Host + Device ports on KD-UPS52U, KD-X4x1WUTx wall plate transmit (sold separately) and KD-100MRx (included) create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer

  • PTZ USB Camera Integration: Integrates natively with KD-CAMUSB for full PTZ control via KD-App

  • KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement

  • KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™

  • Ease of Integration: Complete configuration using Key Digital Management Software™ Pro

  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled

  • CEC Manager™: Power, volume, and muting controls of the connected display/projector without any additional control wiring. Selection of desired CEC command recipient.

  • Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors

  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2

  • HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels

  • Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UPS52U

  • Installation: Half-rack width with rack and under-table mounting ears included

  • Signal Extension: For resolution and cable quality

  • 4K/UHD (18G): Up to 100m / 328ft

    • 1080p: Up to 150m / 492ft

    • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage

  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device

  • RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit

  • Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit

  • Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™

  • Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.

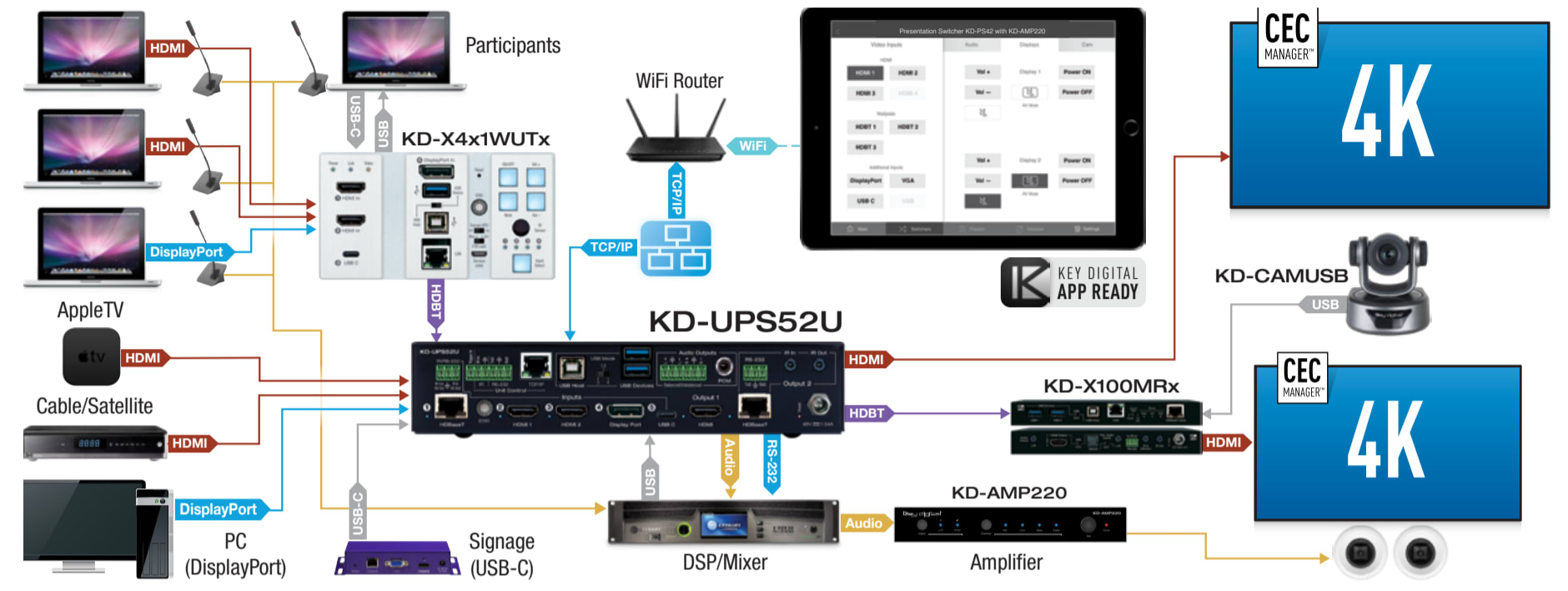

System design example
