Bussystemer
Sorter Navn (a > å)

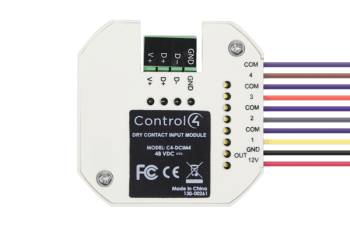

Control4 C4-DCIM4

The 4-Channel Bus Dry Contact Input Module allows up to four toggle switches or other dry contact closures to trigger lights, scenes or any other automation event in a Control4 system.
10301546

Control4 C4-DIN-8APD-E

The Control4 DIN-Rail 8-Channel Adaptive Phase Dimmer controls up to eight loads from one module in the Control4 system. It is an adaptive phase dimmer, so each channel supports a variety of load types including incandescent, halogen, electronic low-voltage (solid-state) transformer, magnetic (iron core) low-voltage transformer, fluorescent, compact fluorescent, LED, and motor. The DIN-Rail 8-Channel Adaptive Phase Dimmer automatically detects the load type and sets the appropriate dimming mode.
10303423

Control4 C4-DIN-8ESW

The Control4® 8-Port Ethernet Switch is a standard 8-port 10/100 switch that allows a single Ethernet CAT5e cable to be pulled into a lighting panel, and then distributed to up to seven (7) other Control4® panelized lighting devices including Dimmer, Relay, and Bus Ethernet Bridge Modules within the panel.
10301283

Control4 C4-DIN-8REL-E2

The Control4® 8-Channel Relay controls up to eight (8) high in-rush loads from one module in the Contro4® system. Each channel supports a variety of load types including Incandescent, Halogen, Electronic Low Voltage Transformers, Magnetic Low Voltage Transformers, Fluorescents, Compact Fluorescents, LEDs and Motors.
10301282

Control4 C4-DIN-8RELSW-E

The Control4 DIN-Rail 8-Channel Relay Switch controls up to eight high in-rush loads from one module in the Control4 system. Each channel supports a variety of load types, including incandescent, halogen, electronic low-voltage transformers, magnetic low-voltage transformers, fluorescents, compact fluorescents, LEDs, and motors.
10303516

Control4 C4-DIN-8TV-E

The Control4® 8-Channel 0-10V Dimmer controls up to eight (8) 0-10V dimmable fluorescent ballasts or LEDs. Each channel can control up to 50 ballasts. Individual 0-10V lights can be programmatically tied to a corresponding channel on a Control4® 8-Channel Relay module for on/off control of the ballast or LED when needed. Alternatively, the Control4 8-Channel 0-10V Dimmer module also has eight (8) low-voltage outputs for triggering external power relays.
10301951

Control4 C4-DIN-BEG-v2

The Bus Ethernet Gateway is the connection point for all wired keypads and other devices on the Control4 Centralized Lighting keypad bus. The Ethernet Gateway is designed to convert RS-485 communication to Ethernet for usage with Centralized Lighting modules and a Control4 controller.
10303290

Control4 C4-DIN-BPS48

The Control4® Bus Power Supply is intended for use in a Control4 system. This device installs in a Control4 Panelized Lighting panel or in any standard DIN rail panel with 35mm rails. The Bus Power Supply provides the power to the Bus Ethernet Gateway (C4-DIN-BEG) and Control4 wired keypads (C4-KCB-xx and C4-SKCB-xx) in a Panelized Lighting system.
10301179
