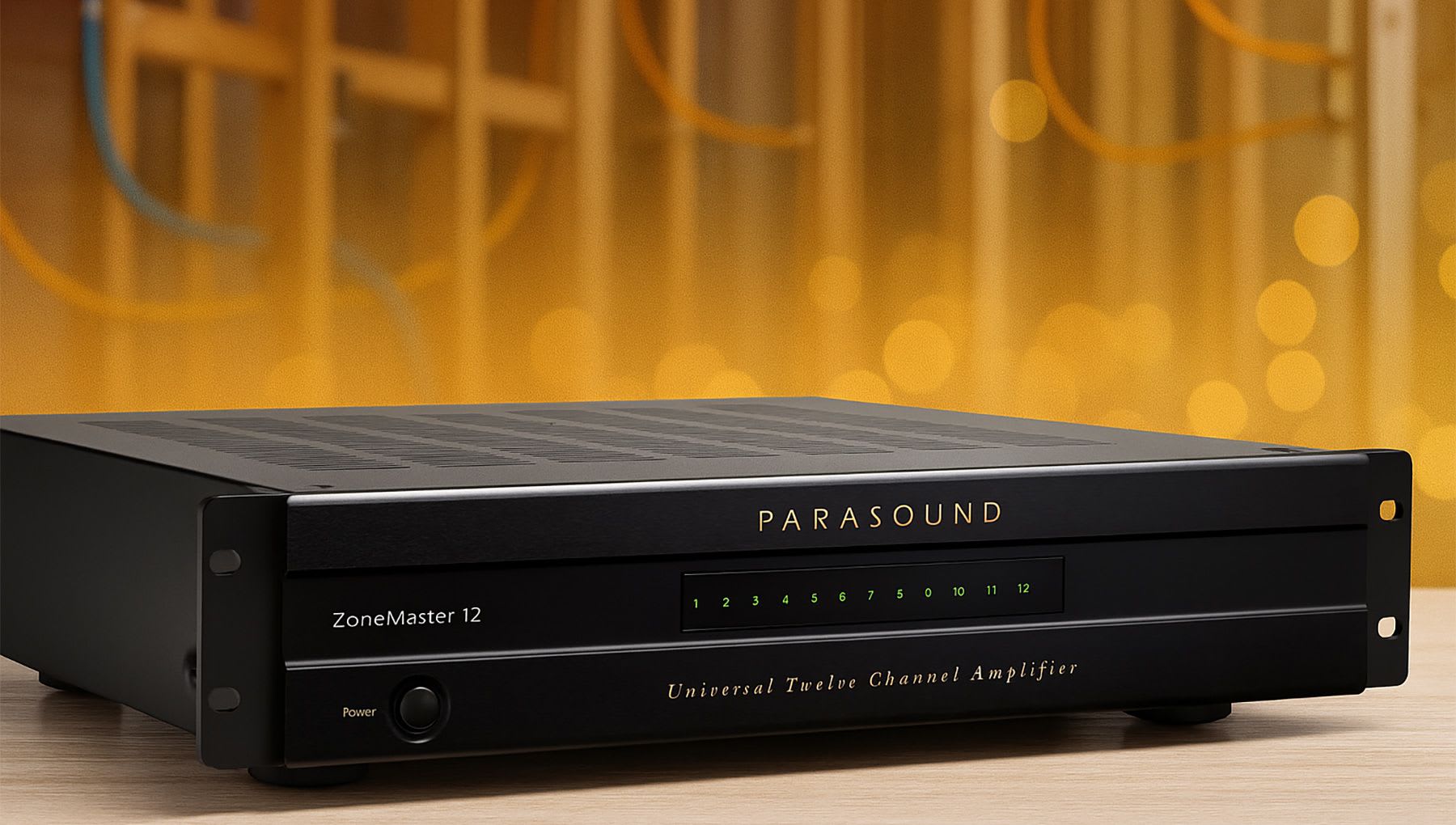

Parasound ZoneMaster 12, 12 x kanals effektforsterker

ZoneMaster 12 er en distribusjonsforsterker for hele huset som er verdig å kalles en Parasound. Parasounds ZoneMaster 12 er en svært allsidig 12-kanals, 24-høyttalers effektforsterker for applikasjoner fra 60 til 150 watt med A- og B-utganger for alle 12 kanaler. Det kompakte 2U-chassiset tar liten plass, og 2U-stativmonteringsutstyr er inkludert i esken. ZoneMaster er Parasounds nye serie med høyytelses forsterkere for Custom Install markedet.

ZoneMaster-forsterkere kombinerer legendarisk Parasound Class AB-lydkvalitet med de mest pålitelige klasse D-modulene i bransjen. Takket være sin høye ytelse, byggekvalitet og Parasound-teknikk, er ZoneMaster den nye standarden innen bolig- og kommersiell forsterkning.

Spesifikasjoner

• Our new ZoneMaster models are very similar in their feature sets, differing mainly in size and number of channels.
• Universal amplifier for applications from 60 to 150 watts
• Zone 1 (channel 1&2) are higher power for more demanding applications
• 24 speaker connections (A and B outputs for all 12 channels)
• High current for stable operation at 2 Ohms
• Class AB input stage plus premium Class D power stage
• Independent audio sensing triggers, one for each zone
• 6 Independent 12 volt trigger inputs, one for each zone
• Looping 12 volt trigger outputs for each zone
• Master 12 volt trigger input to turn all zones on-off
• Speaker level input for expanding systems w/out pre out jacks
• Two bus inputs can be routed to any zone
• Bus loop output jacks for passing audio to another amp
• Summed Mono mode combines L and R for single speaker applications
• Separate level controls for all twelve channels
• Detachable speaker connectors accept up to 12 gauge wire
• Short circuit and overheat protection with front panel indicators
• 0.5 watt standby power consumption meets Energy Star & EU specs
• Compact 2U chassis

Power Output : Zone 1 (Channel 1–2)
120 watts x 2 @ 8Ω
150 watts x 2 @ 4Ω or 2Ω

Power Output : Zone 2-6 (Channels 3–12)
60 watts x 10 @ 8Ω
100 watts x 10 @ 4Ω or 2Ω
Note: Power ratings are RMS, All Channels Driven (20 Hz - 20 kHz)

Minimum Speaker Impedance:
A+B Outputs of a Single Channel: 2 Ω
Note: Continuous operation at this minimum impedance might require additional ventilation for the amplifier.

Frequency Response:
20 Hz - 20 kHz, +0/-0.25 dB
5 Hz - 50 kHz, +0/-3 dB

Total Harmonic Distortion:
< 0.05 % at typical listening levels
< 1.0% at full power

Interchannel Crosstalk: 70 dB at 20 kHz

Total Gain: 29 dB (Level controls set to Maximum)

S/N Ratio: >112 dB, input shorted, IHF A-weighted

DC Trigger Requirements: +9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements: 2 mV audio signal

AC Power Requirement:
1550 Watts maximum
150 Watts typical (audio playing on all zones)
55 Watts idle (all zones on)
15 Watts idle (one zone on)
0.5 Watts standby
100-250 VAC 50/60 Hz (automatic)

Dimensions:
Width: 17.25" (437 mm)
Depth: 14.5" (369 mm)
Depth, with cables: 16" (406 mm)
Height, with feet: 4.15" (105 mm)
Height, without feet: 3.5" (89 mm)

Weight:
Net: 21 lbs (9.5kg)
Shipping: 27 lbs (12.2kg)
